Description
Competition-Grade Low-Impedance Bass

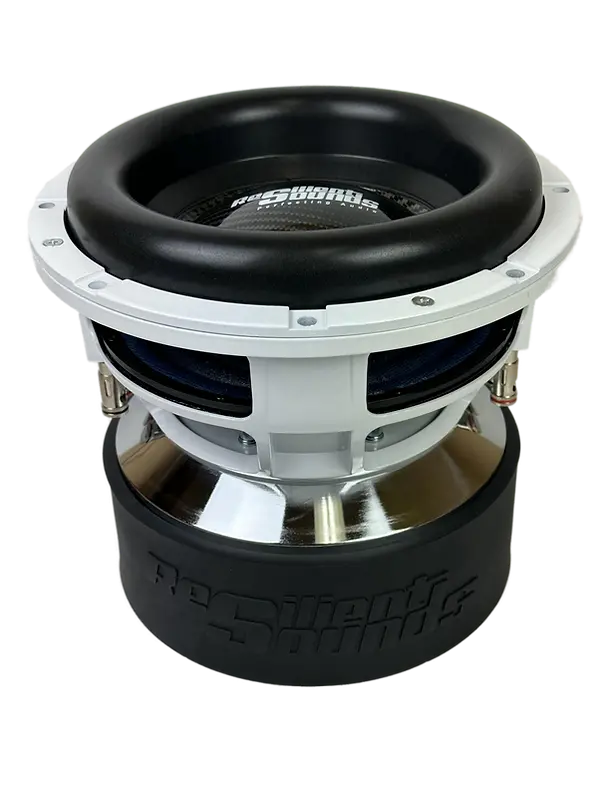

The Resilient Sounds PLATINUM V2 10″ D1 is built for the most demanding audio systems that require ultra-low impedance operation to maximize amplifier output. Engineered to handle a conservative 2,500W RMS, this 10-inch woofer features an XL triple-stacked motor, a 20% longer 3-inch 8-layer voice coil, and a class-leading 35mm of XMAX. Its motor strength is drastically improved, with a BL²/ℜe increase of up to 50% compared to the V1 model. The Dual 1 Ohm impedance option is specifically designed for competitive or extreme daily applications, allowing users to achieve an ultra-low 0.5 Ohm load when wired in parallel, maximizing the performance of high-current, 0.5 Ohm-stable amplifiers.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 10 V2 |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |
| Motor Structure | XL Triple Stacked Motor |
| Cone / Dust Cap | Carbon Fiber |
| Surround | New High Roll Tooled Surround |
| Spider / Leads | 8.5″ Spider Pack with Insulated Dual Leads |
| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.5 – 2.25 CU FT |
| Tuning Frequency | 28 – 33 HERTZ |
| Port Area | 12 – 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 9.125 INCHES |
| Cutout Diameter | 9 7/16 INCHES |
| Displacement | 0.22 CU FT |
