Product Overview: Audio Ace’s Budget-Friendly Powerhouse (D4)

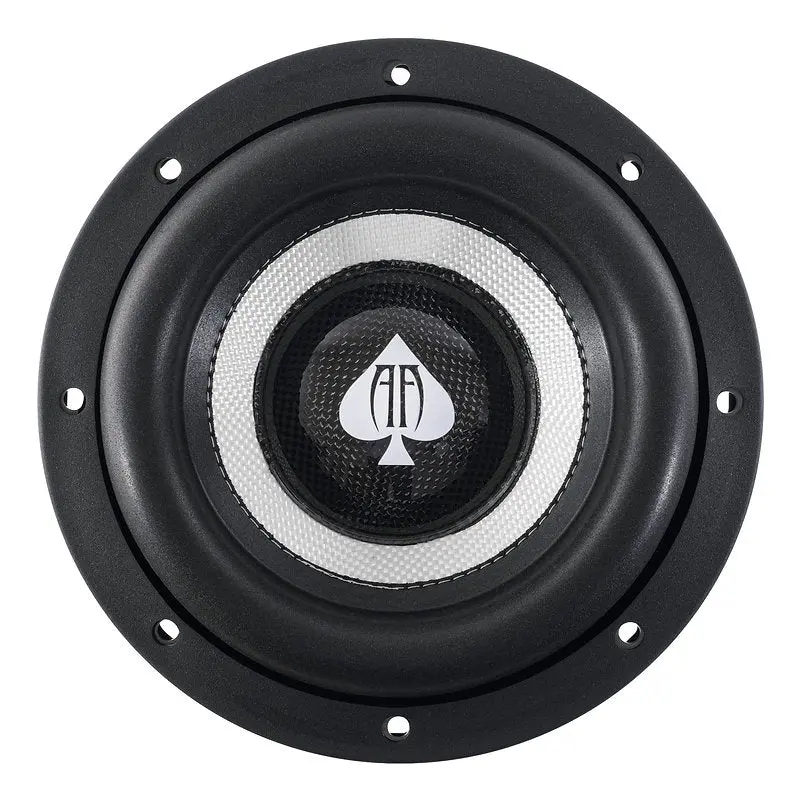

The Audio Ace STR8 NST 8″ D2 is an 8-inch subwoofer designed for big output on a budget. Rated for 1,000W RMS, this compact powerhouse is built to deliver strong sound and high performance without the flagship price tag. It features a 2.5-inch epoxy-coated voice coil, a robust 159 oz motor, and a linear excursion (X_max) of 15.5mm each way. The Dual 2 Ohm impedance provides flexible final impedance options of 1 Ohm or 4 Ohms.
AUDIO ACE STR8 NST 8″ DUAL 4 OHM SPECIFICATIONS |
|
|---|---|
| Size | 8 Inch |
| RMS Power Handling | 1,000 Watts |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Voice Coil | 2.5 Inch Epoxy Coated |
| Motor Weight | 159 oz |
| Maximum Excursion (Xmax) | 15.5mm Each Way |
| Mounting Depth | 6.5 Inches |
| Cutout Diameter | 7.264 Inches |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 82 dB |
| Electrical Q (Qes) | 0.616 |
| Mechanical Q (Qms) | 5.529 |
| Total Q (Qts) | 0.554 |
| Resonance Frequency (Fs) | 54 Hz |
| Effective Piston Area (SD) | 196.07 |
| BL Factor (Bl) | 19.132 |
