The Apex of 12-Inch Subwoofer Engineering

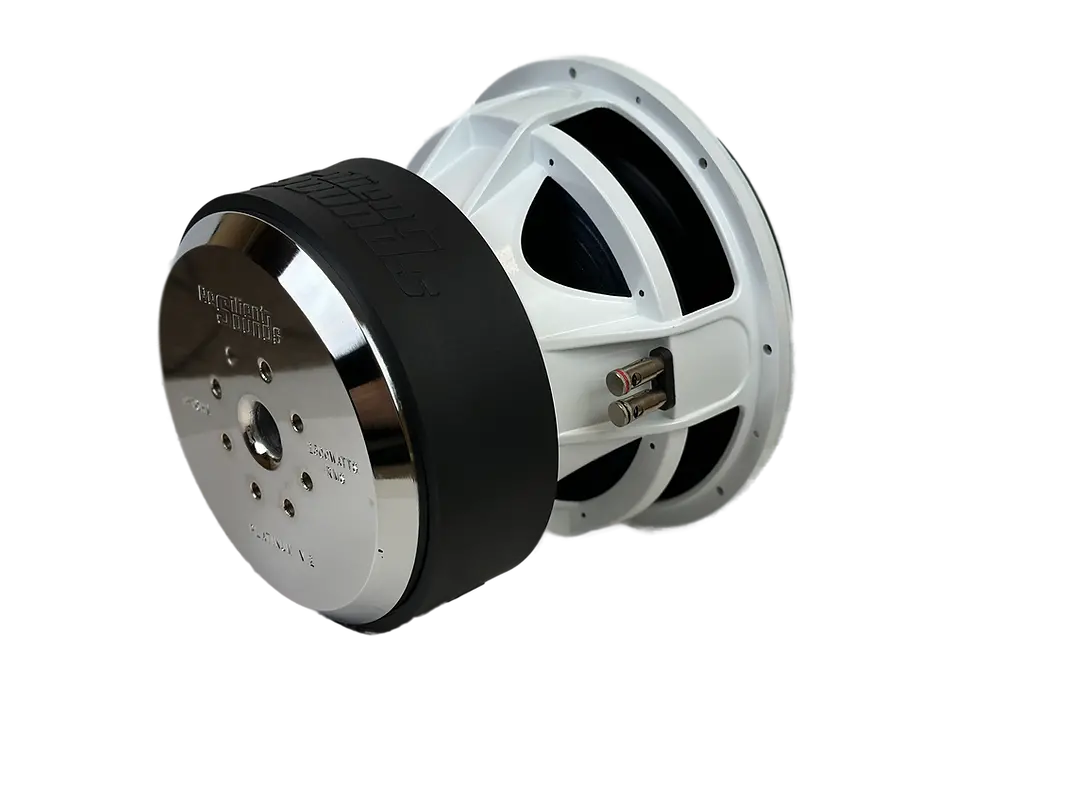

The Resilient Sounds PLATINUM V2 12″ D2 sets a new standard for high-performance subwoofers, engineered for enthusiasts who demand extreme output and reliability. Conservatively rated at a monstrous 500W RMS (5,000 Watts Peak), this 12-inch driver features a 13% larger motor and a 20% longer 3-inch 8-layer voice coil compared to the V1, resulting in up to a 50% increase in motor force (BL²/Re). The Dual 2 Ohm impedance provides flexible wiring for 1 Ohm or 4 Ohm final loads. Combined with a massive 35mm XMAX, a 10-inch spider pack, and a premium carbon fiber cone, this subwoofer delivers clean, chest-thumping bass designed to dominate.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 12 V2 |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |
| Motor Structure | 13% Larger Motor, XL Triple Stacked |
| Cone / Dust Cap | Carbon Fiber |
| Surround | New High Roll Tooled Surround |
| Spider / Leads | 10″ Spider Pack with Insulated Dual Leads |
| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 2.00 – 3.00 CU FT |
| Tuning Frequency | 28 – 33 HERTZ |
| Port Area | 12 – 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 10.25 INCHES |
| Cutout Diameter | 11.175 INCHES |
| Displacement | 0.25 CU FT |
