Description

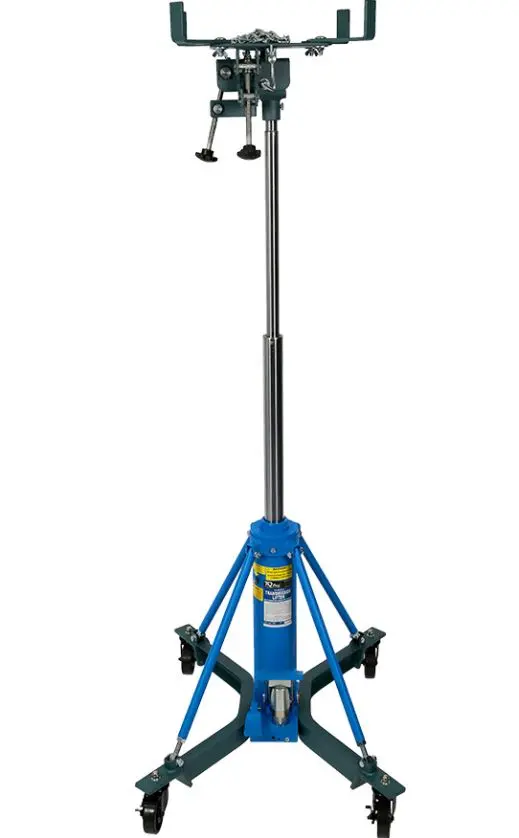

This 2-Stage hydraulic Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Rated to safely work with Transmissions from vehicles with a GVM of less than 2,000kgs, the universal mounting head provides a wide fore and aft tilt range. The foot operated manual hydraulic system has a smooth hydraulic lift and descent. The foot operated pump with a foot release valve lever provides a steady and mechanically controlled safe descending speed.
Features:
- Designed for lifting & lowering passenger car transmissions
- Durable steel frame
- Adjustable lifting platform for quick adjustment for most pan configurations
- Load control chains hold transmission in place
- 4 swivel castors provide stability and easy manoeuvrability
Specifications:
- Safe Working Capacity: RWD/FWD GVM <2,000kg
- Rated Capacity: 500kg
- Maximum Height: 1768mm
- Minimum Height: 820mm
- Lifting Platform: 250 x 362mm
- Forward Tilt: 9˚
- Rearward Tilt: 17˚
- Nett Weight: 52kg
- Gross Weight: 59kg
