Description

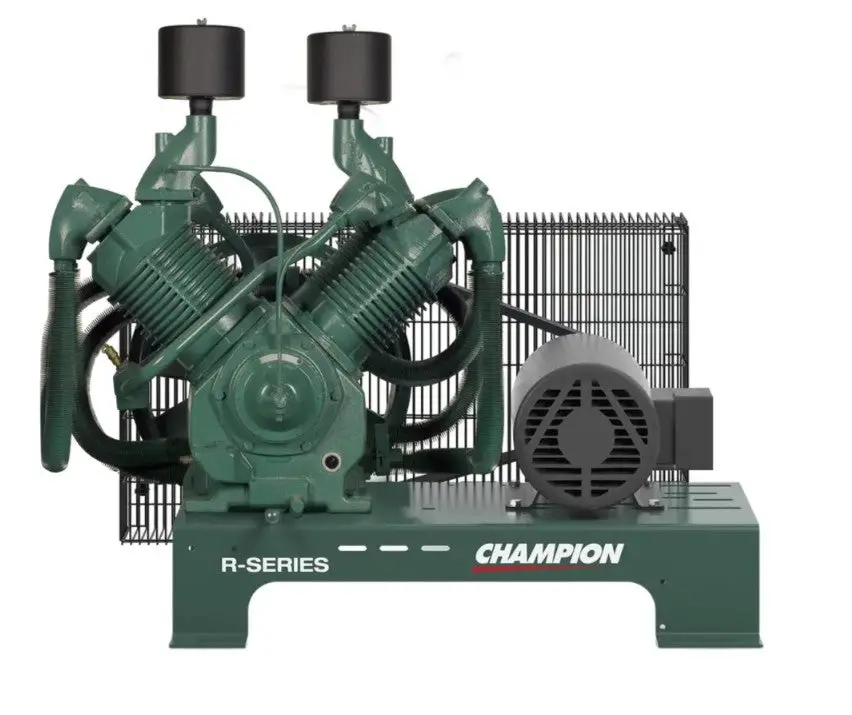

Champion BR25 – 25 HP R-70 Two-Stage Reciprocating Air Compressor | Base-Mounted
Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 90.7 Pump RPM: 776
Tank Configuration: Base Mount (No Tank)
Approx. Ship Weight: 1,020 lbs
Dimensions (L × W × H): 57″ × 44″ × 40″
Model: BR25 Compressor Pump: Champion R-70 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)
Champion’s Industrial 25 HP Powerhouse
The Champion BR25 delivers high-capacity air power for demanding industrial environments.
Equipped with the Champion R-70 two-stage cast-iron pump, this 25 HP base-mounted compressor produces 90.7 CFM @ 175 PSI while operating at a low 776 RPM, ensuring maximum efficiency, cooler temperatures, and longer pump life.
Built for continuous-duty operation, the BR25 integrates seamlessly into centralized air systems or custom receiver setups—making it the ideal choice for manufacturing plants, production lines, and heavy-duty workshops that require reliable, consistent air supply.
R-70 Pump — Industrial Strength, Proven Reliability
Champion’s R-70 pump is designed for 20–30 HP applications, delivering large air volumes at low operating speeds for superior durability and efficiency.
Its cast-iron cylinders, oversized cooling fins, and precision-machined components allow it to run cooler, quieter, and longer than competing designs.
Compared to smaller R-40 units, the R-70 offers:
-
Higher airflow (90.7 CFM vs. 54.1 CFM)
-
Lower RPM operation for reduced heat and noise
-
Longer service intervals and component life
-
Improved efficiency and consistent pressure output
This makes the R-70 one of the most dependable, heavy-duty compressor pumps on the market for industrial applications.
Key Features
-
R-70 Cast-Iron Two-Stage Pump: Large displacement, low-RPM operation for optimal durability and performance.
-
Base-Mounted Design: Perfect for integration into existing air systems or paired with a receiver.
-
High Output: 90.7 CFM @ 175 PSI with efficient low-speed operation at 776 RPM.
-
Cooler, Quieter Operation: Reduced heat and vibration for improved reliability.
-
Heavy-Duty Build: Cast-iron crankcase and cylinders for long-term durability.
-
Loadless Start Centrifugal Unloader: Protects the motor and reduces startup torque.
-
Splash Lubrication System: Proven lubrication for dependable, low-maintenance service.
-
Three-Phase Power Only: Available in 208 V, 230 V, or 460 V configurations.
-
Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the full system.
Performance Specifications
| Specification | BR25 |
|---|---|
| Horsepower | 25 HP |
| Pump Model | R-70 |
| Tank Configuration | Base Mount (No Tank) |
| CFM @ 175 PSI | 90.7 |
| Pump RPM | 776 |
| Voltage | 208 / 3, 230 / 3, 460 / 3 |
| Weight | 1,020 lbs |
| Dimensions (L × W × H) | 57″ × 44″ × 40″ |
| Warranty | 1-Year Package / 3-Year Pump |
Why Buy from Compressed Air Advisors Online
At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions — offering factory-authorized Champion compressors, nationwide delivery, and expert product guidance.
The BR25 stands out with its low-speed R-70 pump, producing 90.7 CFM @ 175 PSI with quiet, efficient operation and industry-leading reliability — backed by free freight and full factory warranty protection.
💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support
The Champion BR25 — featuring the R-70 low-RPM pump delivering 90.7 CFM @ 175 PSI. Built for continuous-duty industrial use with long-lasting, efficient performance.
