Description

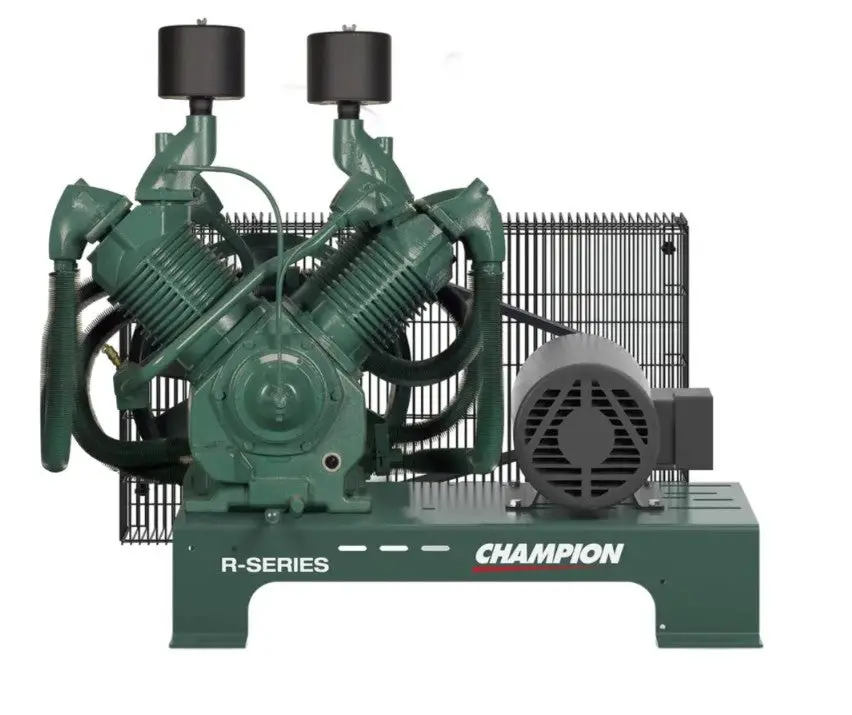

Champion BR20 – 20 HP R-70 Two-Stage Reciprocating Air Compressor | Base-Mounted
Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 77.8 Pump RPM: 664
Tank Configuration: Base Mount (No Tank)
Approx. Ship Weight: 1,000 lbs
Dimensions (L × W × H): 57″ × 44″ × 40″
Model: BR20 Compressor Pump: Champion R-70 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)
Industrial Air Power Redefined with the R-70 Pump
The Champion BR20 is built for high-volume, continuous-duty industrial performance.
Equipped with the robust R-70 cast-iron two-stage pump, this 20 HP base-mounted compressor delivers 77.8 CFM @ 175 PSI while operating at only 664 RPM, producing more air at a slower speed for cooler, quieter, and longer-lasting operation.
The BR20 is designed for integration into central air systems, multiple-user setups, or installations that require a dedicated compressor without a tank — offering efficiency, reliability, and true industrial strength.
R-70 Pump vs. R-40 Pump — The Next Evolution in Performance
Champion’s R-70 pump is a significant upgrade from the R-40. Both are precision-machined, cast-iron, two-stage designs built for endurance, but the R-70 offers greater displacement, larger valves, and enhanced cooling capacity for heavy-duty applications.
| Comparison | R-40 Pump | R-70 Pump |
|---|---|---|
| Typical HP Range | 15 HP | 20–30 HP |
| Max CFM @ 175 PSI | 54.1 | 77.8 |
| Pump RPM | 776 | 664 |
| Cylinders | 2 | 2 (larger bore/stroke) |
| Design Focus | Efficiency & longevity | High output & thermal control |
This lower-speed, larger-displacement design allows the R-70 to deliver more air with less stress, extending component life and reducing downtime — a true industrial-grade upgrade for demanding operations.
Key Features
-
R-70 Cast-Iron Two-Stage Pump: Large-capacity, low-speed design for high output and longevity.
-
Base-Mounted Configuration: Ideal for custom or centralized air systems.
-
High Output (77.8 CFM @ 175 PSI): Handles large industrial air demands with ease.
-
Low-Speed Operation (664 RPM): Reduces wear, heat, and noise for extended service life.
-
Heavy-Duty Construction: Precision-machined, cast-iron crankcase and cylinders for durability.
-
Loadless Start Centrifugal Unloader: Smooth startups, reduced motor strain.
-
Splash Lubrication System: Proven, low-maintenance lubrication method.
-
Three-Phase Power Only: 208 V, 230 V, or 460 V configurations.
-
Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the complete package.
Performance Specifications
| Specification | BR20 |
|---|---|
| Horsepower | 20 HP |
| Pump Model | R-70 |
| Tank Configuration | Base Mount (No Tank) |
| CFM @ 175 PSI | 77.8 |
| Pump RPM | 664 |
| Voltage | 208 / 3, 230 / 3, 460 / 3 |
| Weight | 1,000 lbs |
| Dimensions (L × W × H) | 57″ × 44″ × 40″ |
| Warranty | 1-Year Package / 3-Year Pump |
Why Buy from Compressed Air Advisors Online
At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions — providing expert guidance, factory-authorized Champion products, and nationwide delivery.
The BR20 combines the proven durability of Champion’s R-Series with the power of the R-70 pump, offering unmatched reliability for large-scale operations — backed by free freight and full factory warranty protection.
💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support
The Champion BR20 — featuring the powerful R-70 pump delivering 77.8 CFM @ 175 PSI at just 664 RPM. Built to handle the toughest industrial air demands with efficiency and endurance.
