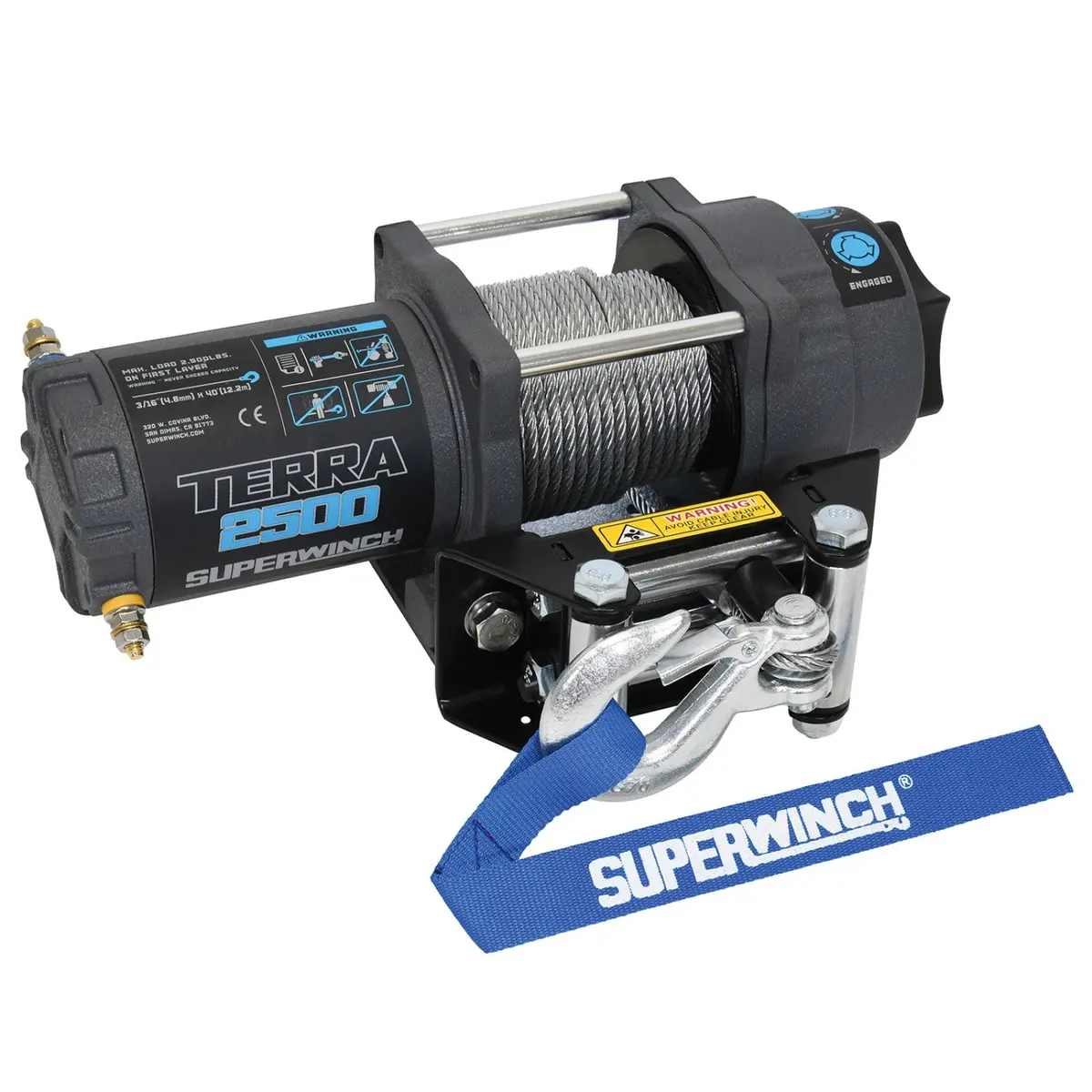

Superwinch Terra 2500 ATV and UTV Winch — 1.5 HP Motor, 2500-Pound Line Pull, Heavy-Duty Steel Wire Rope

Description

Superwinch Terra 2500 12V Wire Winch Cable

The Superwinch Terra 2500 is the standout performer in powersports ATV/UTV winching. It’s not a claim we make lightly and we back it up with stronger motors, wider gears, beefed up drums and durable steel cable. Designed with the toughest terrains in mind, this series of ATV and side by side winches, delivers a pull rating of 2,500 lbs. Features rugged all metal 3-stage planetary gear train construction.
Rated line pull of 2,500 lbs
1.5 HP permanent magnetic motor
3-Stage planetary gearing with 138:1 ratio
Sealed solenoid with circuit breaker
Easy to engage ergonomic freespool control knob
Wire rope measures 3/16in. x 40ft.
Heavy-duty, clevis pinned, latched hook
4-way roller fairlead
10ft. rugged handheld remote control with handlebar mounted rocker switch
Narrow drum allows easier mounting in tight spaces
Specifications
Brake: Automatic, 100% Load Holding
Clutch: Free-Spooling, Ergonomic Control
Fairlead: Heavy Duty 4-Way Roller
Gear Ratio: 138:1
Gearing: 3-Stage Planetary
Hook: Heavy-Duty, Clevis Pinned Latched
Motor: Sealed 1.5 HP Permanent Magnet
Mounting Bolt Pattern: 3.0in x 4.87in (76mm x 124mm)
Rated Line Pull: 2,500 lbs (1134.0 kg)
Remote: Sealed Hand-Held with 10ft cord
Rope: Steel Wire 3/16in x 40ft
Solenoid: Sealed Solenoid, Circuit Breaker Protected
Warranty: Limited Lifetime Mechanical, 3 Year Limited Electrical
