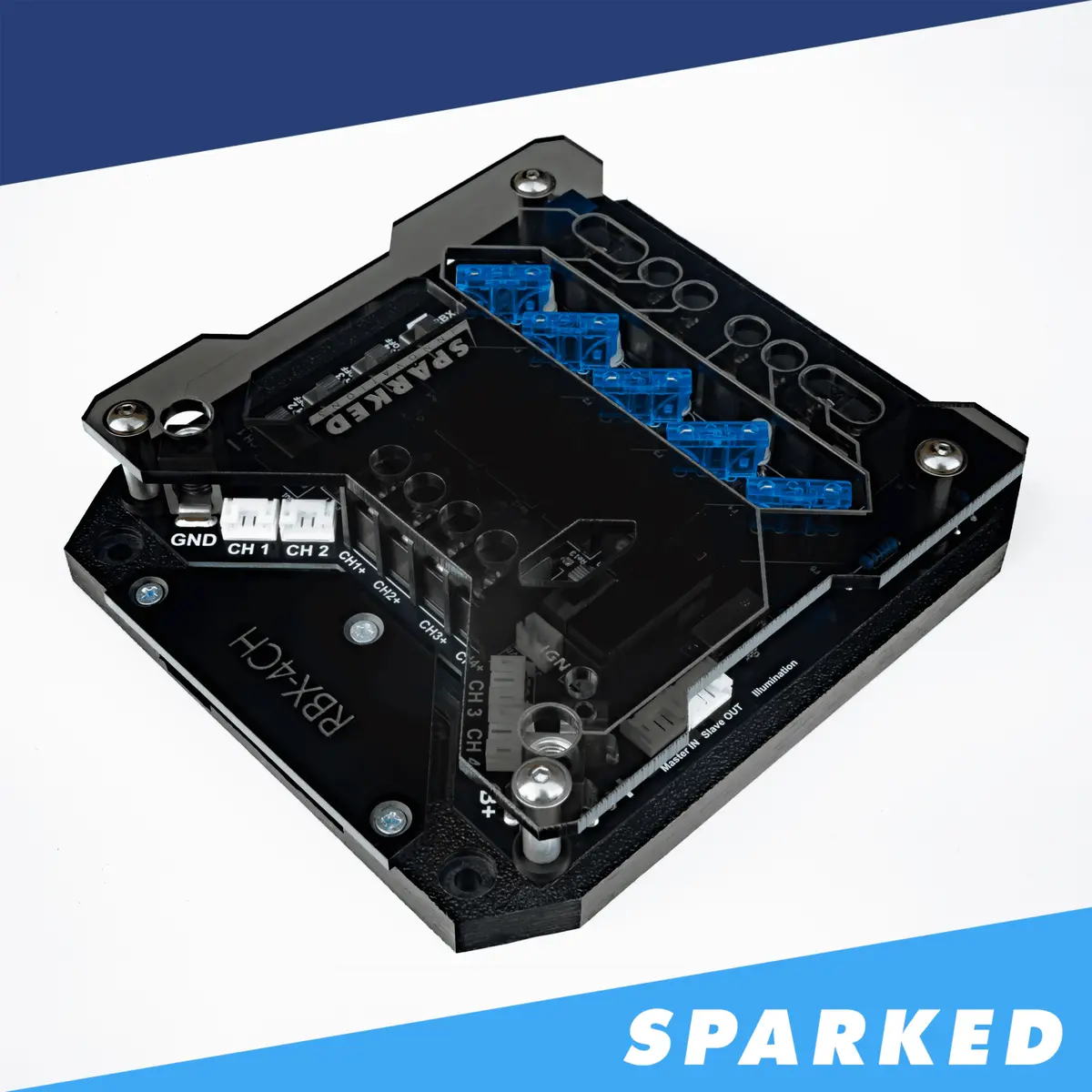

RBX-4CH Four-Channel SPDT Relay Box Special Black Edition
New Special Edition Black PCB with all the same features and functionality as our very successful self-contained four-channel 12VDC relay box You may use a fifth switch and wire harness connected to the Master input to control the entire on/off functionality of the relay box. Alternatively, you may hook an accessory wire from your vehicle’s ignition to the IGN input for easy remote turn-on capability. You also get ignition interrupt and master/slave functionality.
| 12VDC voltage range |
9~18VDC |
|---|---|
| Dimensions |
1.20″H, 5.20″W, 6.00″L |
| Remote Input |
Positive (+) |
| Switched Channels |
4 |
| Non-Switched Channels |
1 |
| Total Peak Current Capacity |
90A |
| Total Continuous Current Capacity |
75A |
| Current Capacity Per Channel |
15A |
| Fuses |
5 x 15A ATC |
| Power Wire Input Gauge |
4~10 AWG |
| Remote Input Terminals |
10~22 AWG Fork Terminals or Bare Wire |
| Output Terminals |
10~22 AWG Fork Terminals or Bare Wire |
| Weight |
12.2 oz |
| Manufacturer |
Sparked Innovations, LLC |
