Saylor-Beall VT755 – 10 HP Two-Stage Reciprocating Air Compressor with 707 Pump, 34.4 CFM at 175 PSI

Description

Saylor-Beall VT-755 Vertical Two-Stage Air Compressor

120 Gallon Tank | Magnetic Starter Optional | Rare 10 HP Single-Phase Option

The Saylor-Beall VT-755 vertical air compressor is purpose-built for facilities that require serious airflow but do not have access to three-phase power. Manufactured, assembled, and tested in St. Johns, Michigan, the VT-755 stands out as one of the very few true 10 horsepower air compressors available in a single-phase configuration, making it a rare and highly valuable solution in the compressed air market.

This model is available exclusively with a 120-gallon vertical tank, providing substantial air reserve, reduced cycling, and stable pressure for automotive service facilities, woodworking operations, light manufacturing, and industrial maintenance environments.

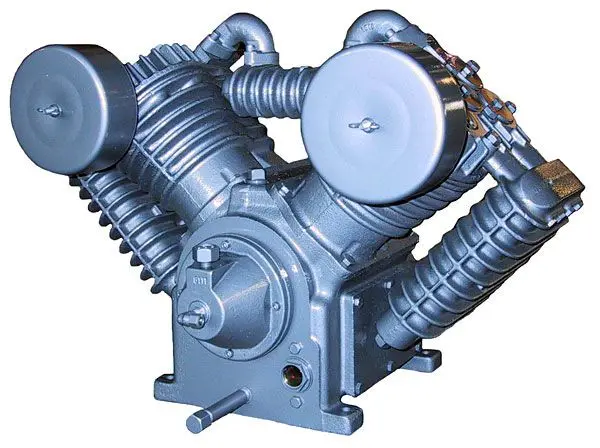

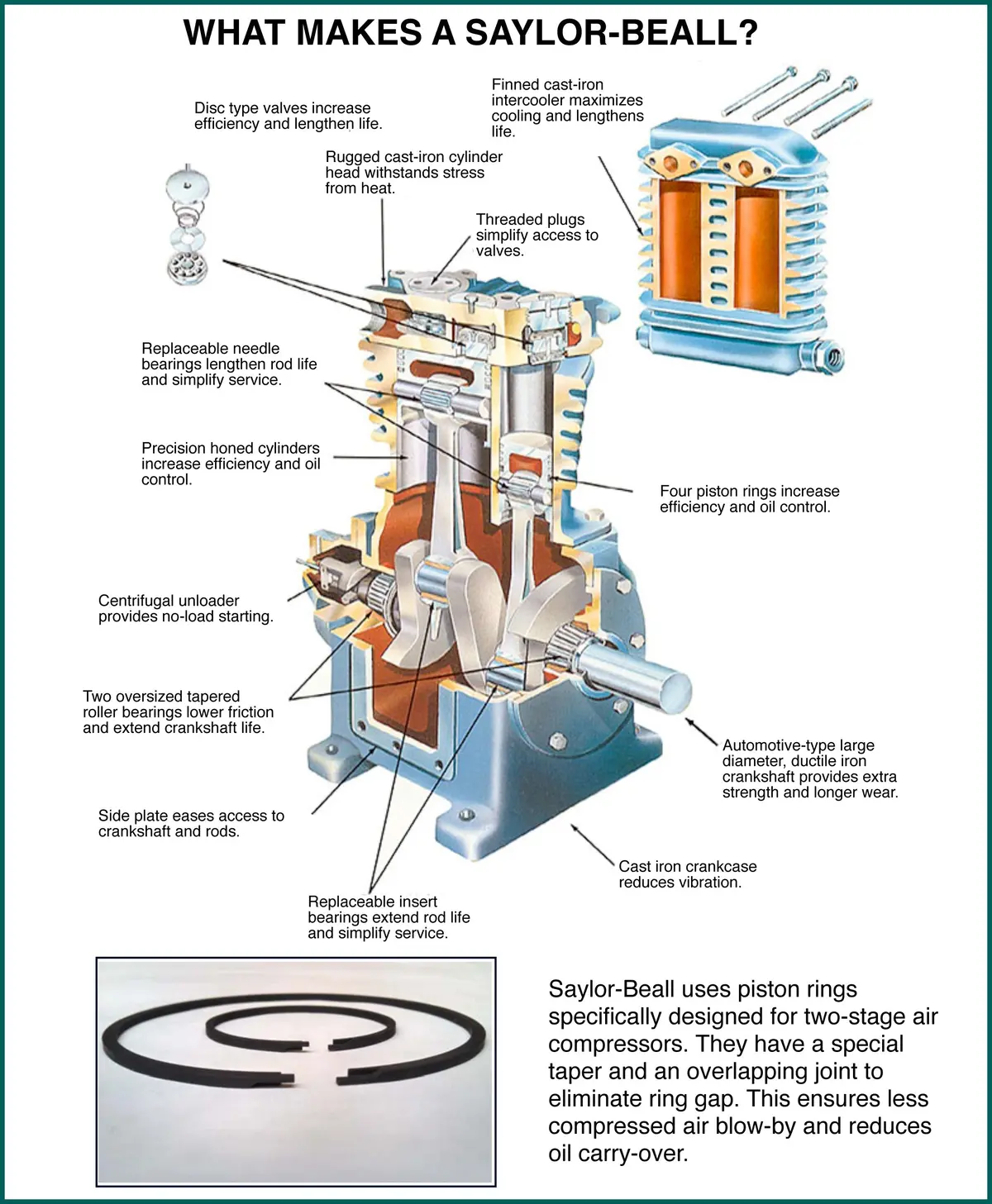

At the core of the VT-755 is Saylor-Beall’s heavy-duty cast-iron two-stage pump, engineered with precision-honed cylinders, four piston rings for superior oil control, oversized tapered roller bearings, and a rugged cast-iron crankcase that minimizes vibration and extends service life. A centrifugal unloader allows for smooth no-load starting, reducing electrical stress and improving long-term reliability.

What truly sets the VT-755 apart is its single-phase power availability. For shops that lack three-phase service but still require the output of a 10 HP compressor, this unit is often the only practical option offered by any manufacturer without stepping down in performance or relying on rotary screw alternatives.

Configuration Options

Tank Size

• VT-755-120 – 120-gallon vertical tank for maximum air reserve and reduced compressor cycling

Electrical Options

• Available in single-phase power, a rare offering in the 10 HP class

• Also available in three-phase configurations for facilities that require it

Magnetic Starter Option

• Available with or without a magnetic starter

• Magnetic starter recommended for improved motor protection and electrical safety

Performance Specifications

• Horsepower: 10 HP

• Delivered Airflow: 34.4 CFM @ 175 PSI

• Maximum Pressure: 175 PSI

• Pump Model: 707

• Pump Speed: 845 RPM

• Compression Type: Two-stage

• Lubrication: Splash lubricated

• Tank Orientation: Vertical

Why Choose the Saylor-Beall VT-755?

• One of the only true 10 HP single-phase compressors available

• Ideal for facilities without three-phase electrical service

• High airflow suitable for demanding tools and continuous operation

• Heavy-duty cast-iron construction throughout

• Two-stage compression for efficient high-pressure performance

• Designed for daily industrial use

• American-made quality backed by over a century of compressor manufacturing experience

When you purchase the Saylor-Beall VT-755 from Compressed Air Advisors Online, you’re working with America’s choice for compressed air solutions. Our nationwide expertise ensures proper electrical configuration, correct sizing, and long-term support from a trusted compressed air partner.
