Description
Unyielding Power and Precision

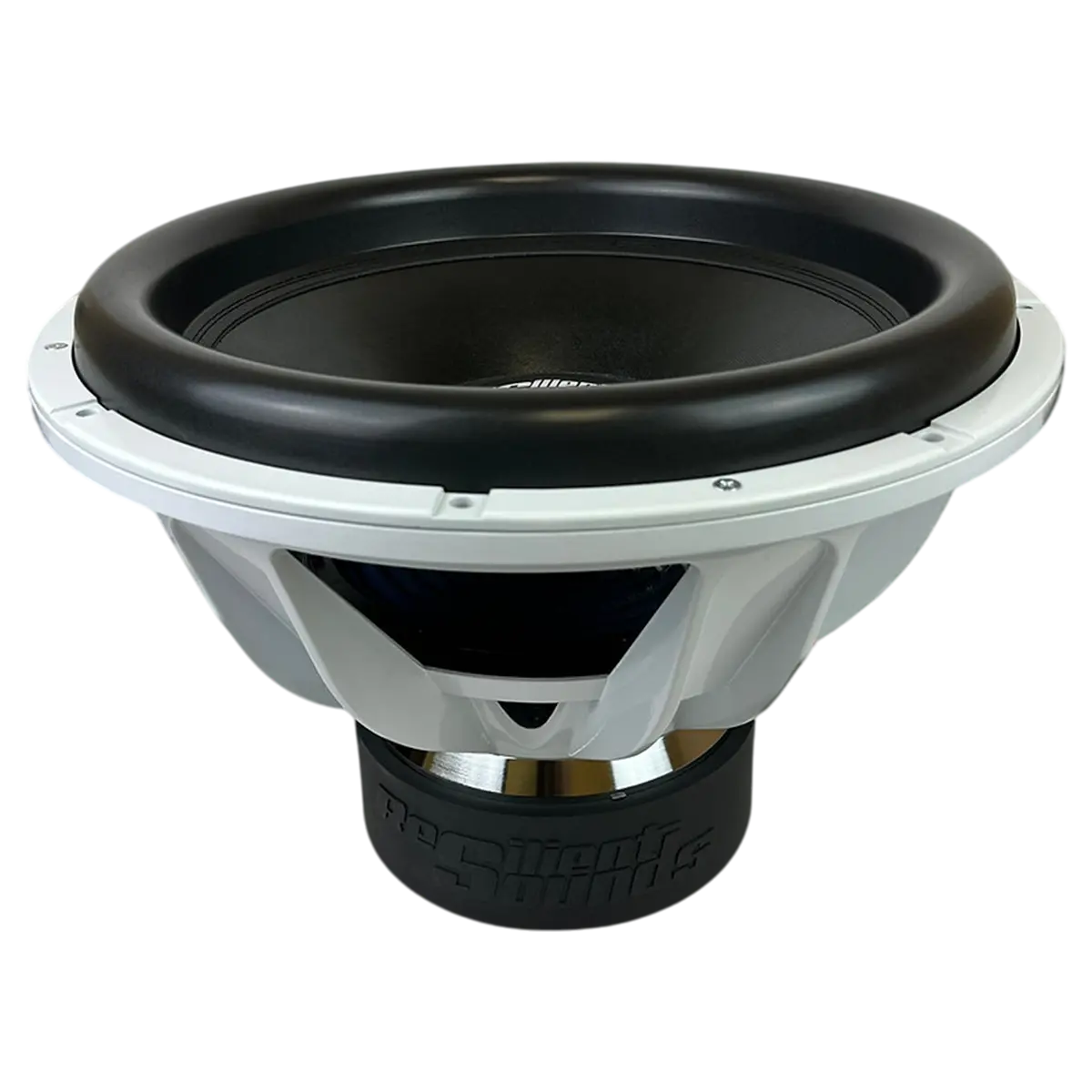

The Resilient Sounds GOLD V2 18″ is engineered for the serious audio enthusiast seeking massive, accurate bass from a conservatively rated power platform. The V2 generation brings significant upgrades, including a larger, heavily-vented triple-stack 220mm motor and an extended 3-inch 4-layer voice coil, which contribute to its impressive 31mm of XMAX. Built on a robust cast aluminum frame, the GOLD V2 is designed for longevity and peak performance. The Dual 4 Ohm voice coil allows for flexible wiring options, achieving a final load of 2 Ohms or 8 Ohms to match a wide range of mono amplifiers.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 18″ |
| Nominal Impedance | Dual 4 Ohm (D4) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |
| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1) |
| Shorting Ring | Aluminum |
| Spider/Leads | 10″ Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |
| Terminals | 4 Ga Push Terminals |
| Outside Diameter | 18 5/32 Inches |
| Cutout Diameter | 16.93 Inches |
| Mounting Depth | 11.56 Inches |
| Displacement | 0.28 CU FT |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 4 – 6 CU FT |
| Tuning Frequency | 28 – 32 HERTZ |
| Port Area | 12 – 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 11.56 INCHES |
| Cutout Diameter | 16.93 INCHES |
| Displacement | 0.28 CU FT |
| Outside Diameter | 18 5/32 INCHES |
