Description
Optimized Low-Impedance Bass Power

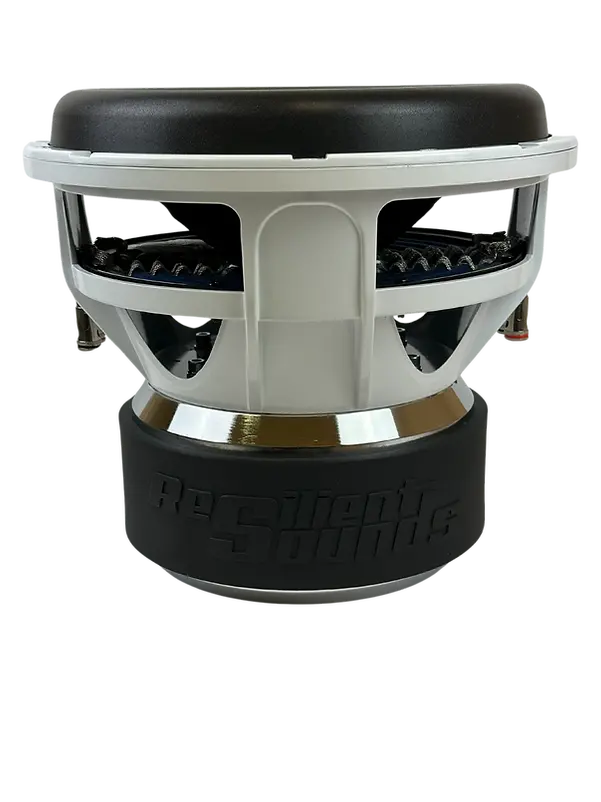

The Resilient Sounds GOLD V2 12″ D2 is the premier choice for maximizing output when paired with 1 Ohm-stable amplifiers. This 12-inch powerhouse maintains the conservative 1500W RMS rating and features the same high-performance components: a 3-inch 4-layer voice coil, a 220mm triple-stack motor, and a huge 31mm XMAX. The Dual 2 Ohm voice coil configuration is ideal for achieving a final load of 1 Ohm (single amplifier to multiple subs) or 4 Ohms (single subwoofer), making it a high-efficiency solution for competitive and daily driven systems alike.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 12″ |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |
| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot |
| Surround / Spider | NEW High Roll Tooled Surround, 10″ Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |
| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Shorting Ring | Aluminum |
| Available Sizes | 10″, 12″, 15″, and 18″ |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.75 – 2.75 CU FT |
| Tuning Frequency | 29 – 33 HERTZ |
| Port Area | 12 – 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 9.125 INCHES |
| Cutout Diameter | 11.175 INCHES |
| Displacement | 0.20 CU FT |
| Outside Diameter | 12 5/32 INCHES |
