Description
Overall height 5 7/8″
Extra Deep – includes filter spacer block for the overdrive 727 Transmission bodies to present
(36RH, 37RH – 66 to 89)
(46RH, 47RH – 89 to 95) and is also called the A-518
(46RE, 47RE – 96 to 01)
(48RE 02 to 07)
(All 5.9 Diesels)
Must check for Clearance
Holds 4 quarts more fluid than stock pan
Includes: Bolt kit, and Drain Plug.

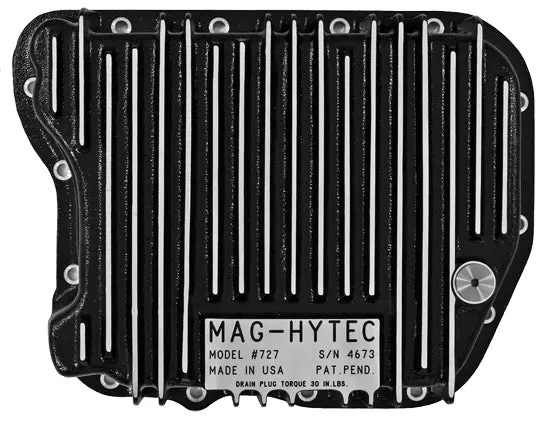

Heavy Duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working recreational and service vehicles. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function – cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required, and all Mag-Hytec parts are covered by a lifetime limited warranty. Depend on Mag-Hytec when you’re pulling a heavy load.
Avoid costly reapirs – Extend the life of your Vehicle – Expand oil Capacity – Runs Cooler, Lasts Longer
• Deep high-capacity sump for maximum cooling
• Magnetic drain plug
• 303 hardware except allen head cap screws are zinc plated
• 1/8 NPT temperature sender port
• Finned aircraft aluminum construction
• Requires only three allen key wrenches (included) for installation and service
• O-rings require no gaskets or sealants*
| Weight | 17 lbs |
|---|---|
| Dimensions | 16 x 12 x 6 in |
| 1/2, 3/4, or 1 Ton or Higher |
1 Ton or Higher, 1/2, 3/4 |
| 4X2 / 4X4 |
4X2, 4X4 |
| Auto / Stick |
Automatic |
| Diesel / Gas |
Diesel, Gas |
| Single or Dual Rear Tires |
DRW, SRW |
| Truck, Van, Motorhome |
Motorhome, Truck, Van |
