KHPD1 Single-Lever iambic keyer paddle for amateur radio

Description

Introduction

The KHPD1 is the KH1 Transceiver’s keying device fitted with a 3.5 mm (1/8”) stereo plug that can be plugged into the KEY/DATA jack. This jack doubles as a serial port for firmware updates and remote control.

Overview

Overview

 The optional KHPD1 keyer paddle is designed specifically for hand-held operation. It plugs directly into the KEY/DATA jack in the orientations, see images below.

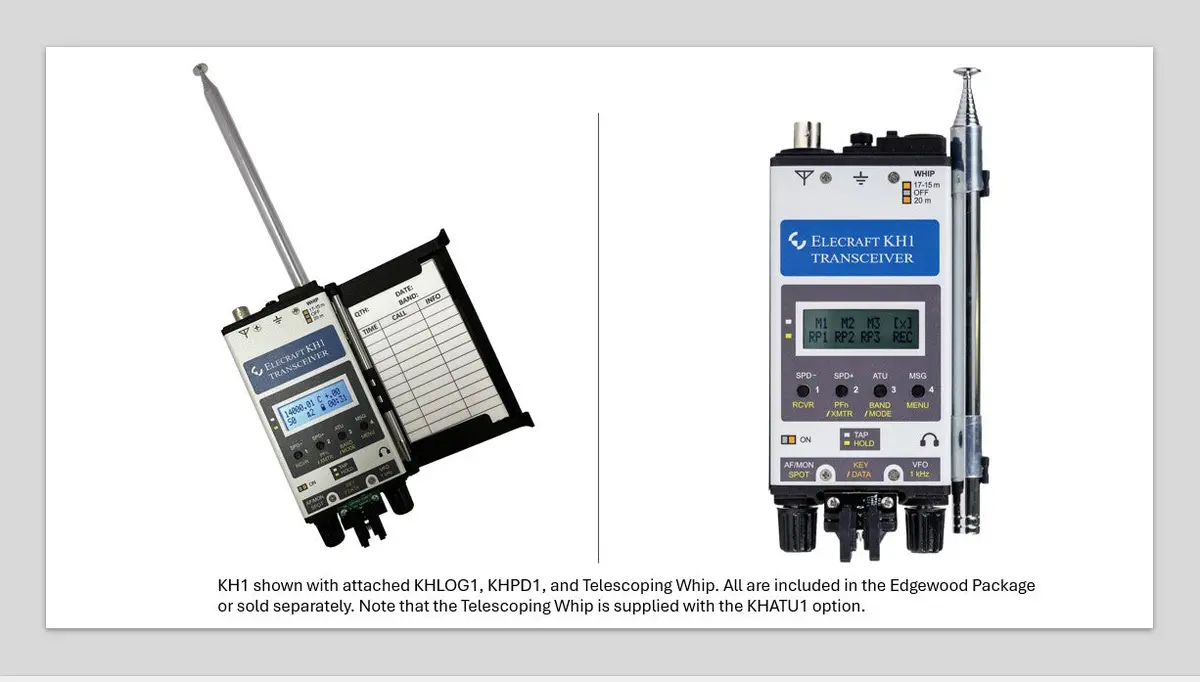

On the left, the KHPD1 is shown in its stored position. On the right, the paddle is shown deployed, out of the way of the AF GAIN and VFO knobs.

Manuals

Manuals

• KH1 Manuals
• KH1 Log Sheet
