Hertz HBD-4-TM 5 HP Belt-Driven Rotary Screw Air Compressor with 120-Gallon Receiver Tank — 19 CFM at 125 PSI, Backed by 10-Year Warranty

Description

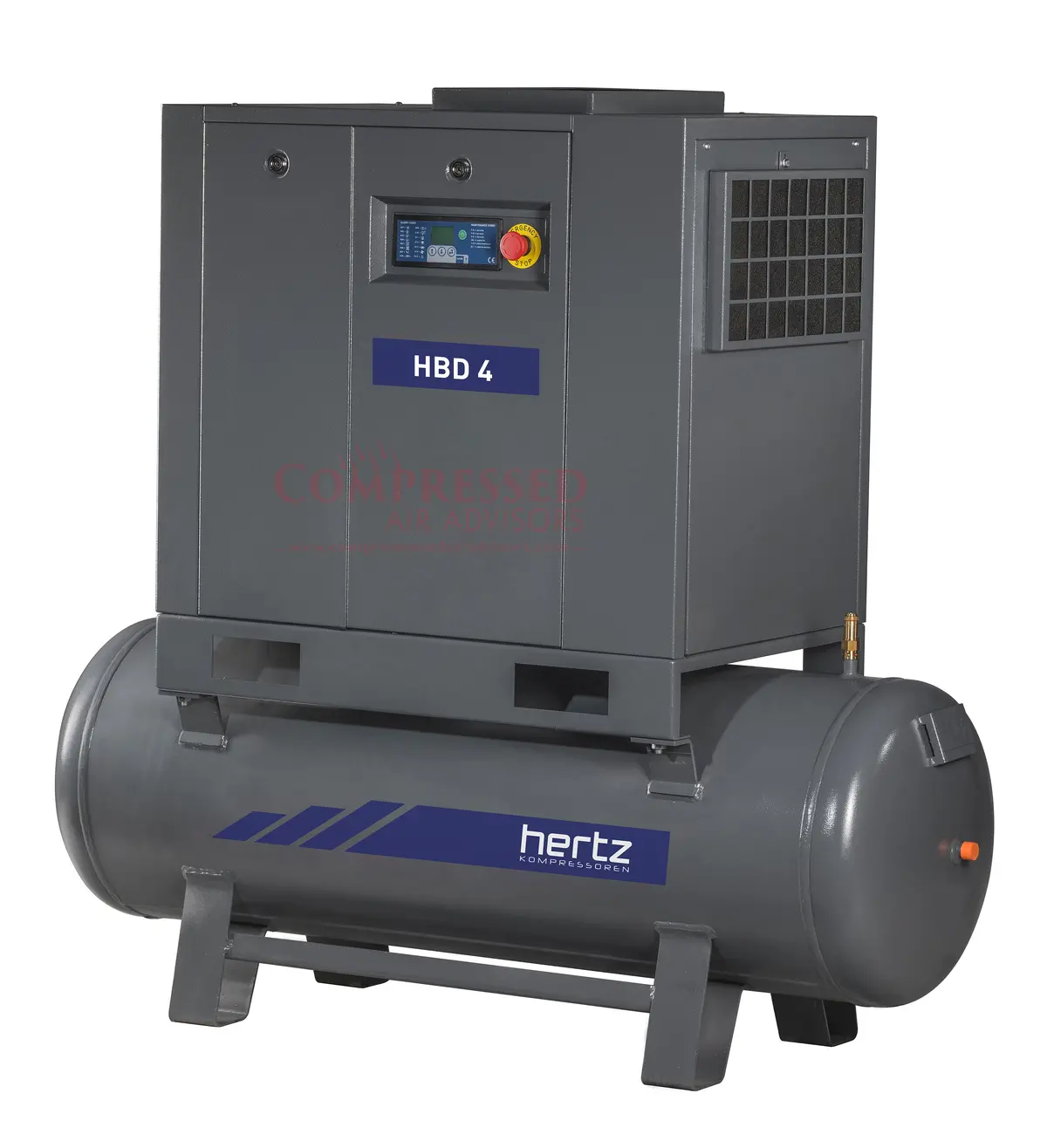

Hertz HBD 4 TM Tank Mount Rotary Screw Air Compressor

The Hertz HBD 4 TM Tank Mount Air Compressor is designed for efficiency, durability, and ease of use, making it the ideal choice for light industrial and workshop applications. Built on Hertz’s proven HBD belt-driven series, this compact 4 kW / 5.5 HP rotary screw compressor provides dependable performance with a small footprint and low noise level.

Key Features & Benefits

• Factory-Configurable Pressure Options: Ships standard at 125 PSI, with factory settings available for 100, 150, or 175 PSI to meet your system’s exact requirements.

• Reliable Airflow: Delivers up to 21 CFM at 100 PSI and 19 CFM at 125 PSI, providing a consistent air supply for your tools and equipment.

• Tank Mount Design: ASME-rated air receiver integrates storage capacity with a compact installation footprint.

• Premium Components: Features an IE3 efficiency class IP55 motor, wye-delta starter, and Hertz’s patented screw block for long service life and energy savings.

• Service-Friendly Construction: Quick-release covers, spin-on air/oil separator, and an easy belt-tensioning system reduce downtime and simplify maintenance.

• Quiet Operation: Runs at just 72 dB(A), allowing placement directly in your workshop without excessive noise.

• Built to Standards: UL-certified electrical components and ASME-compliant tanks ensure reliability and safety.

Technical Specifications

• Model: Hertz HBD 4 TM (Tank Mount)

• Motor Power: 4 kW / 5.5 HP

• Capacity: 15–21 CFM (depending on pressure setting)

• Operating Pressure: 100 / 125 / 150 / 175 PSI (factory configurable)

• Noise Level: 72 dB(A)

• Dimensions (L x W x H): 59″ x 22″ x 53″

• Weight: 772 lbs
