Description
’94 to ’02 Dodge Ram 2500 – Five speed trucks
’94 to ’02 Dodge Ram 3500 – all trucks
’90-Present Ford Super Duty (Spec Chassis)
’99-’16 Ford Super Duty F350 Dually
’99-’07 Ford Super Duty F450 Dually
’11-’16 Ford Super Duty F450 Dually
Attention 4X2 Owners: You will need sway bar brackets with this cover.
Overall height 4 1/8
Includes: Bolt kit, Drain Plug and Dip Stick.
Capacity: 8 Quarts

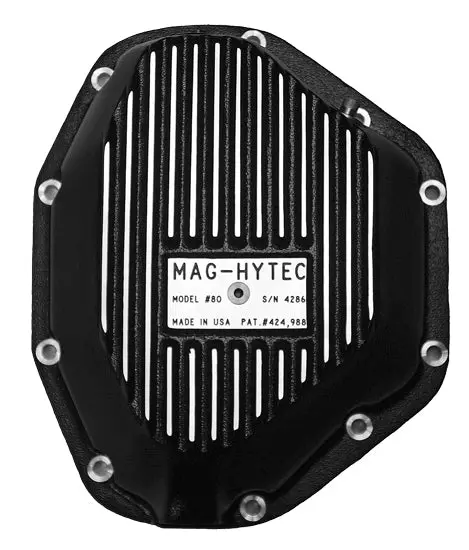

Heavy Duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working recreational and service vehicles. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function – cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required, and all Mag-Hytec parts are covered by a lifetime limited warranty. Depend on Mag-Hytec when you’re pulling a heavy load.
Avoid costly repairs – Extend the life of your Vehicle – Expand oil Capacity – Runs Cooler, Lasts Longer
Average of double the fluid capacity
Ease of Service
The dipstick is knurled for quick removal, the flat is marked low/high to check lube level and a magnet, which acts as an open filter is in the lower end. The MS 7/8 – 14 THD port is large enough to use for filling.
The magnet-filled drain plug is the same MS port as the dipstick. Both the dipstick and drain are O-ring sealed.
The sending unit fitting is 1/8 pipe THD and shipped with a stainless pipe plug.
The calibration plug is centered on the serial number plate and approximates the stock cover fill plug for factory fluid level.
The O-ring is snapped into the inverted “V” groove for a positive seal without gasket or silicone.
Plugs, cap screws and washers are stainless steel in most applications.
Mag-Hytec manufactures the best covers and pans available today.
| Weight | 9 lbs |
|---|---|
| Dimensions | 14 x 12 x 4 in |
| 1/2, 3/4, or 1 Ton or Higher |
1 Ton or Higher, 1/2, 3/4 |
| 4X2 / 4X4 |
4X2, 4X4 |
| Auto / Stick |
Automatic, Standard |
| Diesel / Gas |
Diesel, Gas |
| Truck, Van, Motorhome |
Motorhome, Truck, Van |
| Single or Dual Rear Tires |
DRW, SRW |
