FOX 2.5 Performance Front Shock Lift Kit (1.5–2.5″) for 2020–2025 GMC Sierra 2500/3500 & Chevrolet Silverado 2500/3500

Description

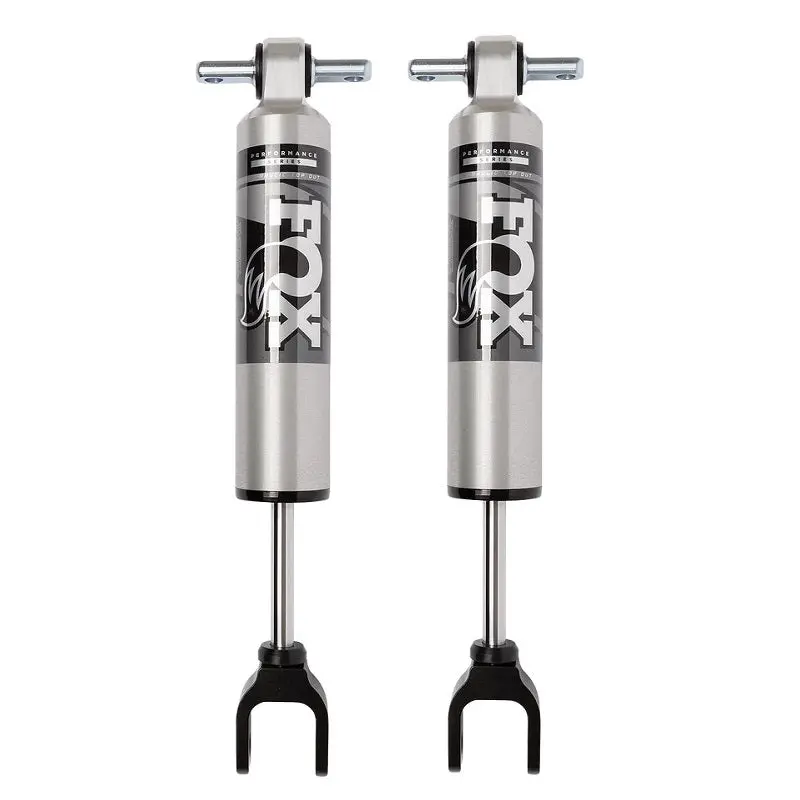

FOX – 2.5 Performance Front Shock 1.5-2.5″ Lift

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

• Features:
2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
TRAVEL: 5.18
FRONT LIFT HEIGHT: 1.5-2.5
EXTENDED LENGTH: 18.95
COMPRESSED LENGTH: 13.76
TOP MOUNT: Bar Pin
BOTTOM MOUNT: Clevis

Fits the following applications:

’20-’25 Chevrolet Silverado 2500 3500
’20-’25 GMC Sierra 2500 3500
