Description

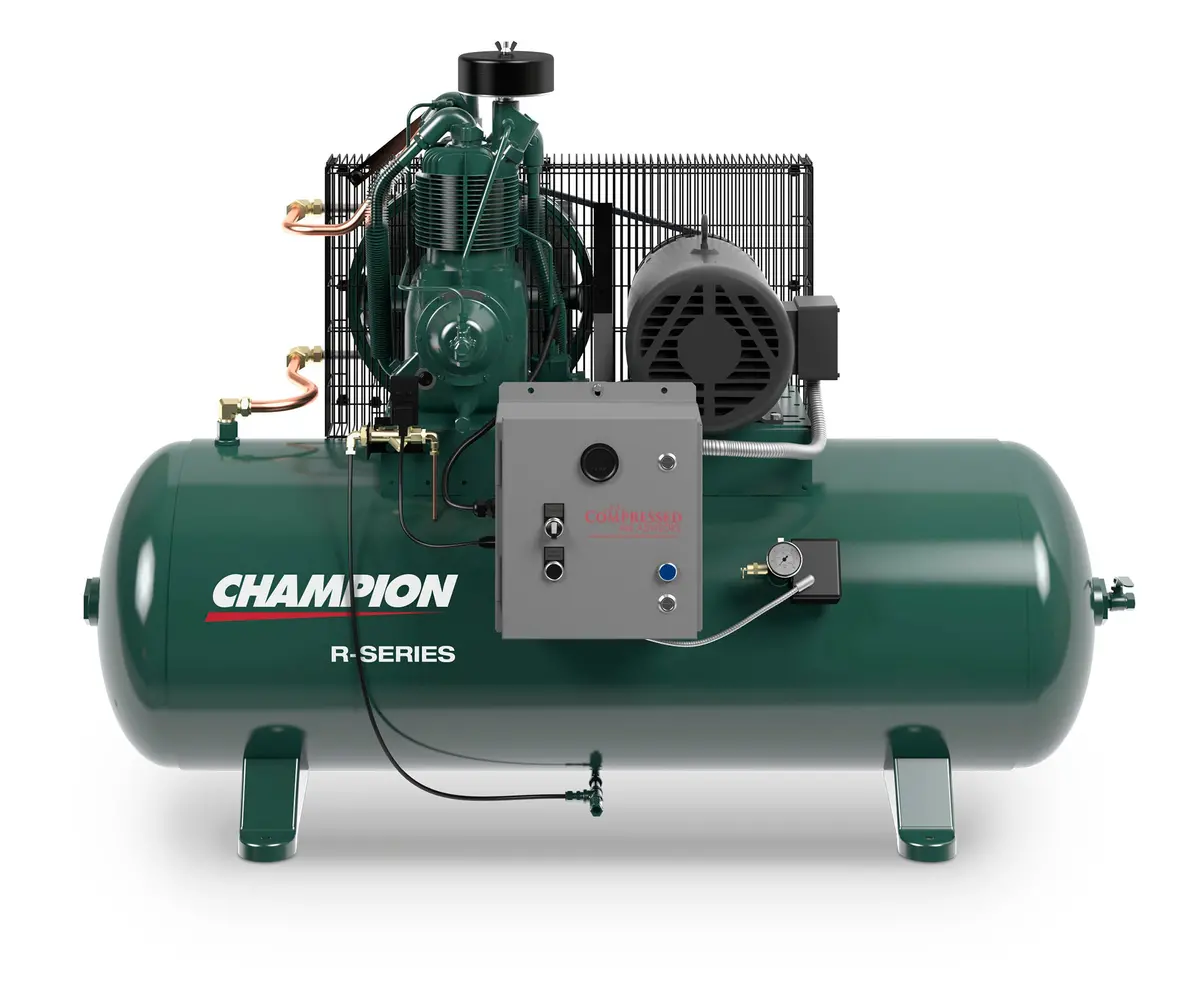

Champion HR5-12 – R-Series 5 HP Two-Stage Reciprocating Air Compressor | 120-Gallon Horizontal Tank
Available Voltages: 208–230 V / 3 Ph, 230 V / 1 Ph, and 460 V / 3 Ph
CFM @ 175 PSI: 17.0
RPM: 737
Tank Size: 120-Gallon Horizontal
Model: HR5-12
Compressor Pump: R-15B
Warranty: 1-Year Standard / 3-Year Pump Warranty (Option for 6-Year Extended with Premium Kit)
Maximum Air Capacity. Legendary Durability.
The Champion HR5-12 is built for shops and facilities that demand continuous, reliable compressed air with extra storage capacity. As part of Champion’s time-tested R-Series, this 5 HP, two-stage, splash-lubricated compressor delivers 17 CFM @ 175 PSI, making it ideal for body shops, manufacturing plants, and industrial environments that rely on consistent performance.
Equipped with the Champion R-15B cast-iron pump, the HR5-12 is engineered for long life, cooler operation, and reduced vibration. A centrifugal unloader ensures smooth, loadless starts, while the large 120-gallon horizontal ASME receiver provides ample air storage for high-demand applications. It’s a powerful, American-built machine designed to run for decades.
Key Features
-
Durable R-15B Pump: Heavy-duty, cast-iron, two-stage compressor pump designed for longevity and reliability.
-
Splash Lubrication System: Proven design ensures proper lubrication and extended service life.
-
Loadless Start Unloader: Allows the compressor to start without head pressure, reducing motor wear.
-
ASME-Certified 120-Gallon Tank: Provides large air storage capacity for consistent system pressure.
-
Flexible Voltage Options: Available in 208–230 V / 3 Ph, 230 V / 1 Ph, and 460 V / 3 Ph.
-
Upgradeable Accessories: Add air-cooled aftercooler, automatic tank drain, low-oil stop control, or vibration isolators for enhanced performance.
-
Extended Warranty Option: Upgrade to the Champion Premium Maintenance Kit for 6 years of pump coverage and 2 years on the package.
Performance Specifications
| Specification | HR5-12 |
|---|---|
| Horsepower | 5 HP |
| Pump Model | R-15B |
| Tank | 120-Gallon Horizontal |
| CFM @ 175 PSI | 17.0 |
| RPM | 737 |
| Voltage | 208–230 V / 3 Ph, 230 V / 1 Ph, 460 V / 3 Ph |
| Weight | 762 lbs |
| Dimensions (L × W × H) | 71″ × 32″ × 55″ |
| Warranty | 1-Year Package / 3-Year Pump |
Why Buy from Compressed Air Advisors Online
At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions—offering expert advice, nationwide delivery, and premium support. We help you find the right equipment for your needs and back it with reliable service and factory-trained knowledge.
💨 Free Freight Across the Continental U.S.
🔧 Professional Advice from Compressed Air Experts
📦 Nationwide Delivery and Factory Warranty Support
The Champion HR5-12—big air, proven performance, and built to power America’s most demanding shops.
