Description
At an impressive 7,350 lumens per 10” section, the brightest just got up to 50% brighter. The OnX6™ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6™ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
The OnX6™ LED Light Bar is BRIGHTER. BOLDER. BETTER.
| Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color |
Specifications: Lumens:7,350 per 10in Section Utilizing 6 Cree LEDs Wattage/Amps: 58.5W / 5A per 10in Section Dimensions: 10″/20″/30″/40″/50 x 4.29″ x 2.69″ Weight: 4.25 lbs Per 10in section LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof up to 9ft & Pressure Washable) IK10 Compliant (Mechanical Impact Testing) |
Includes:

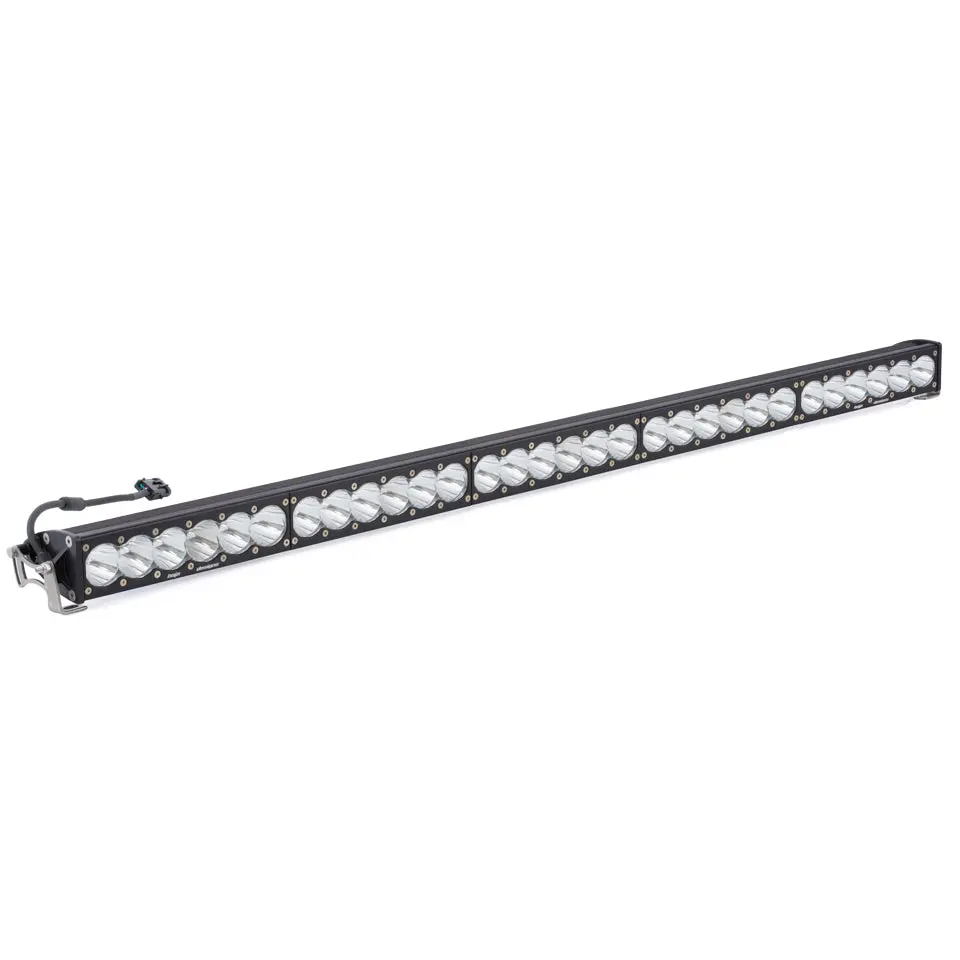

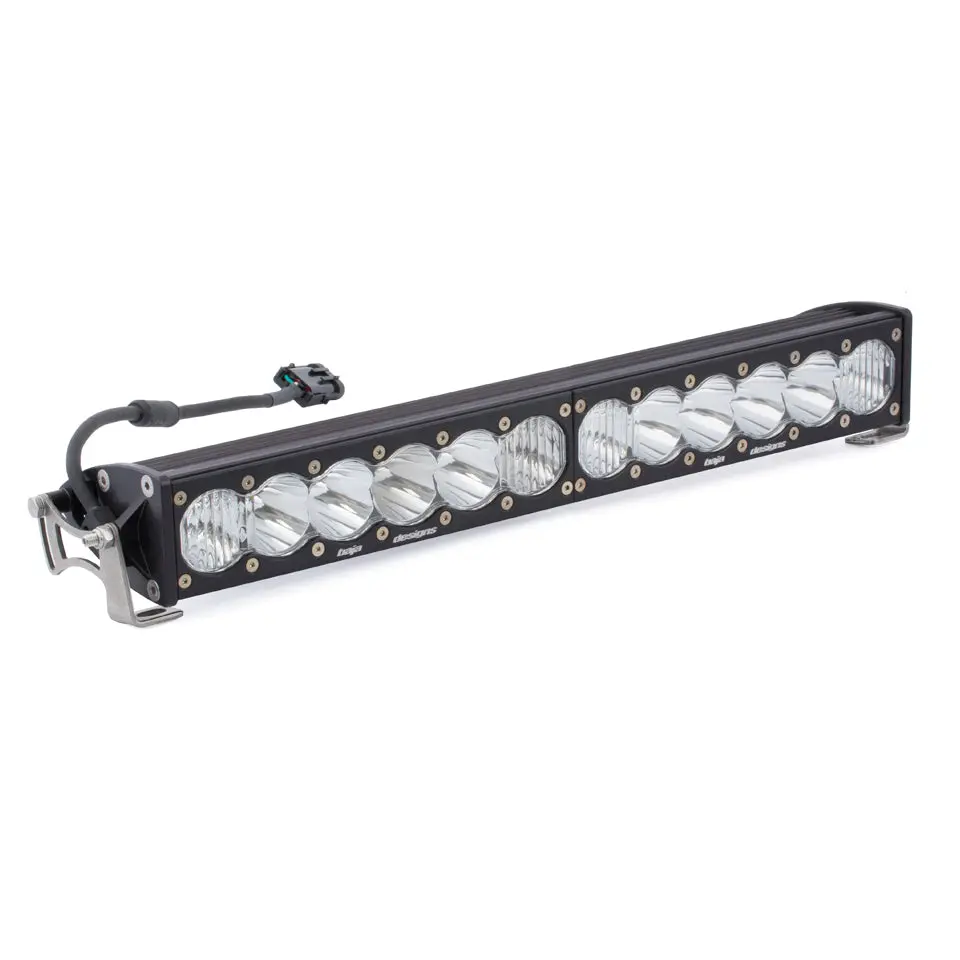

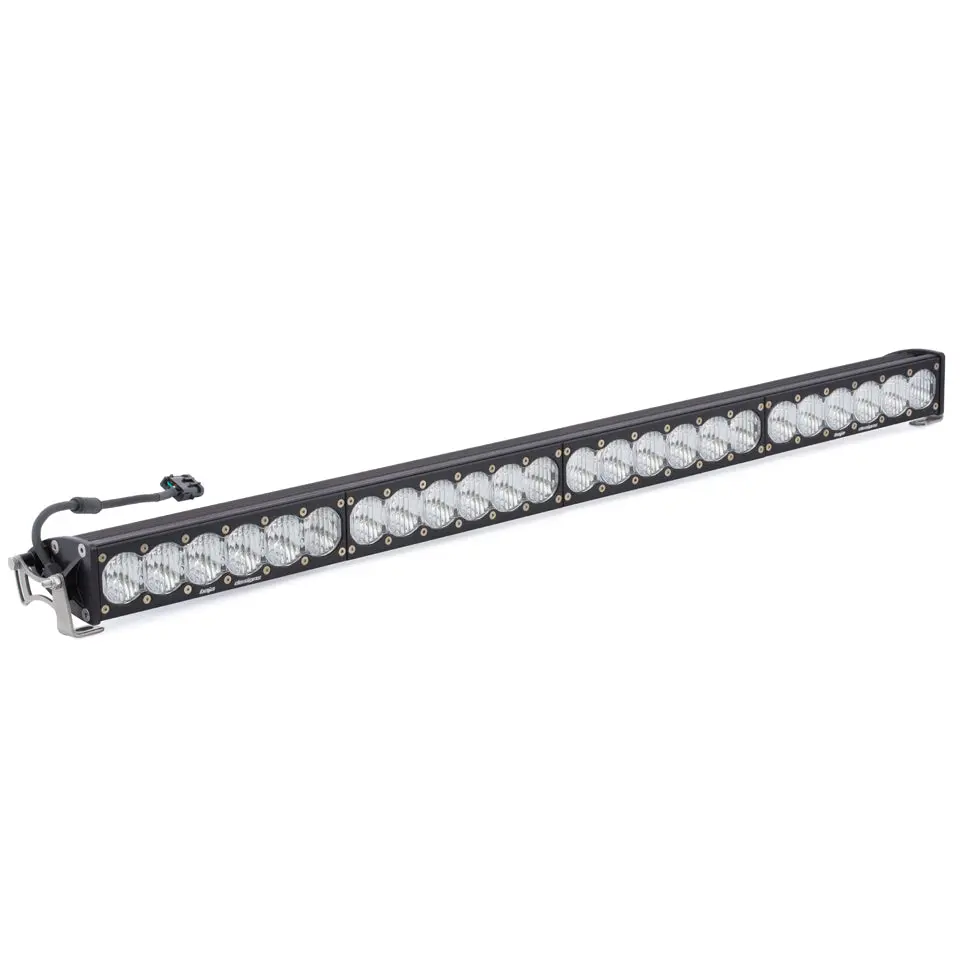

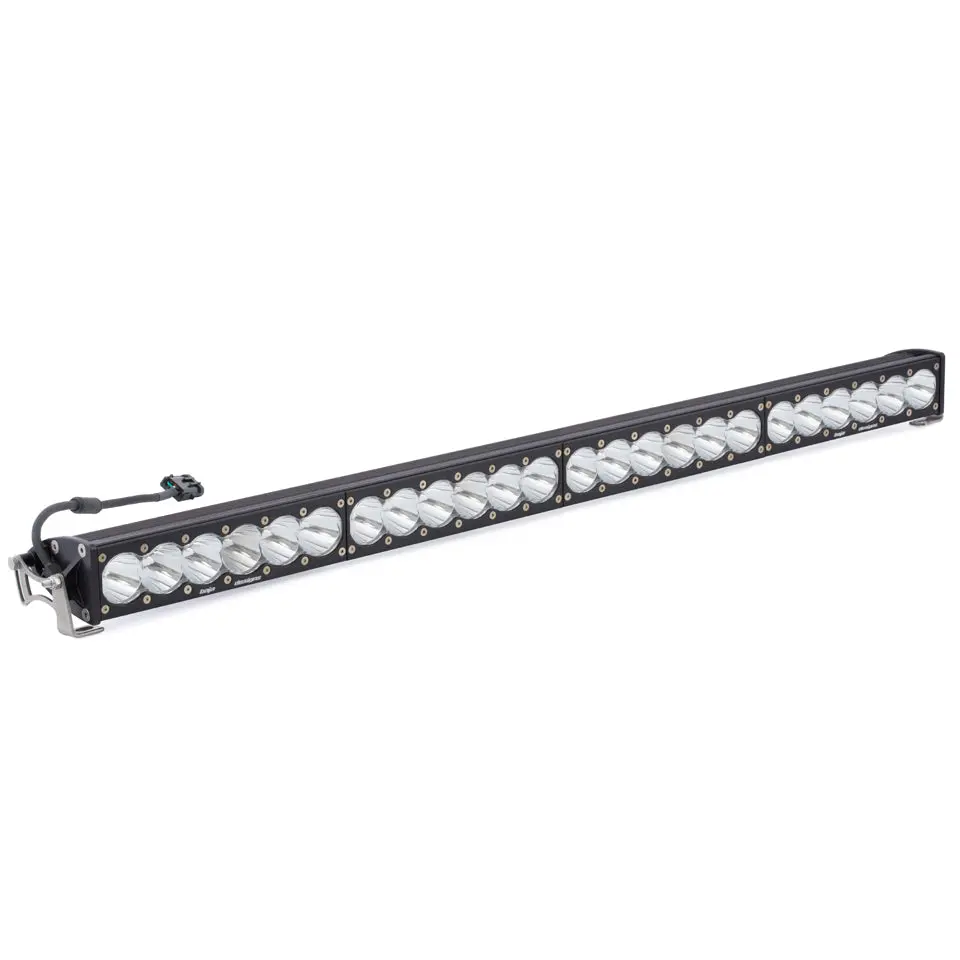

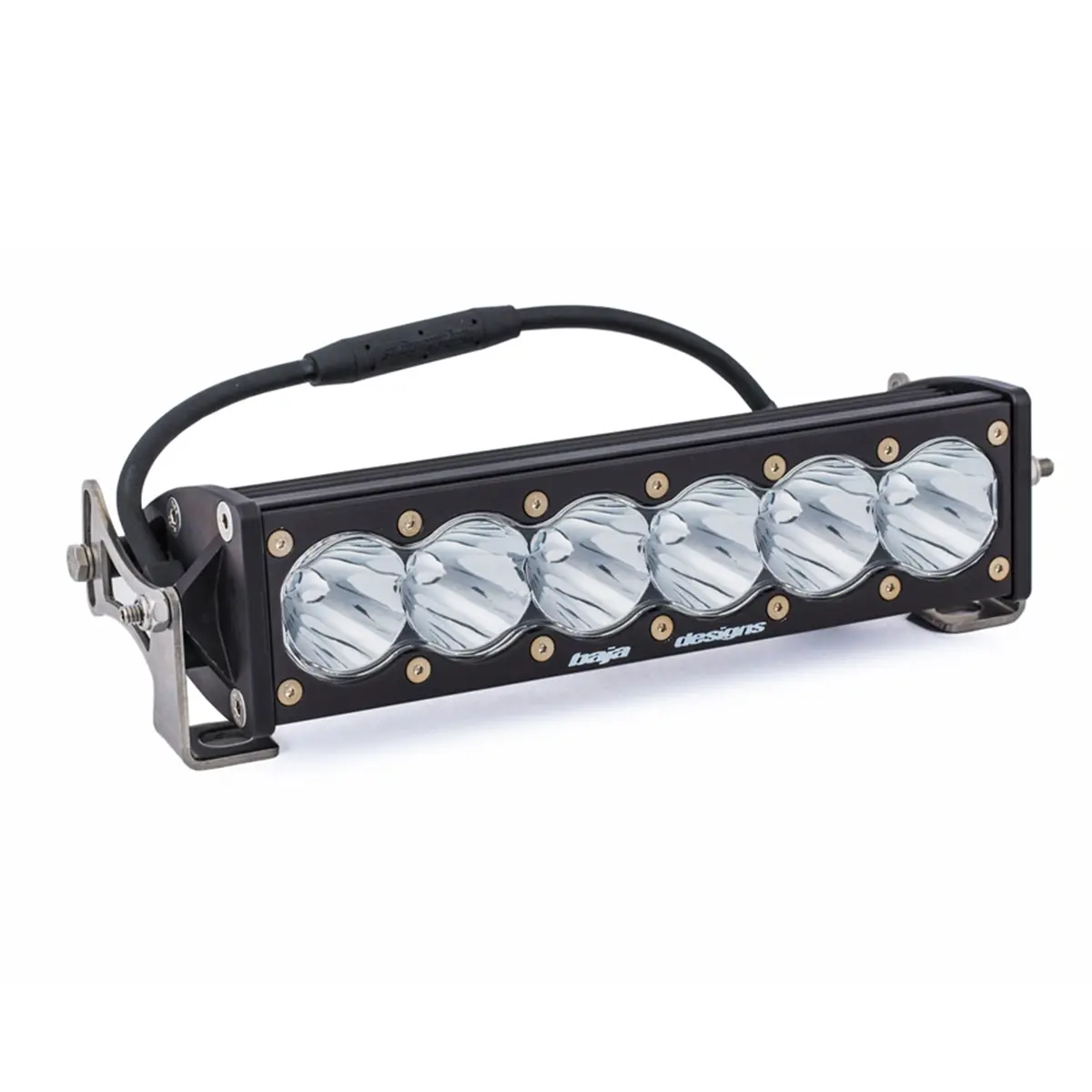

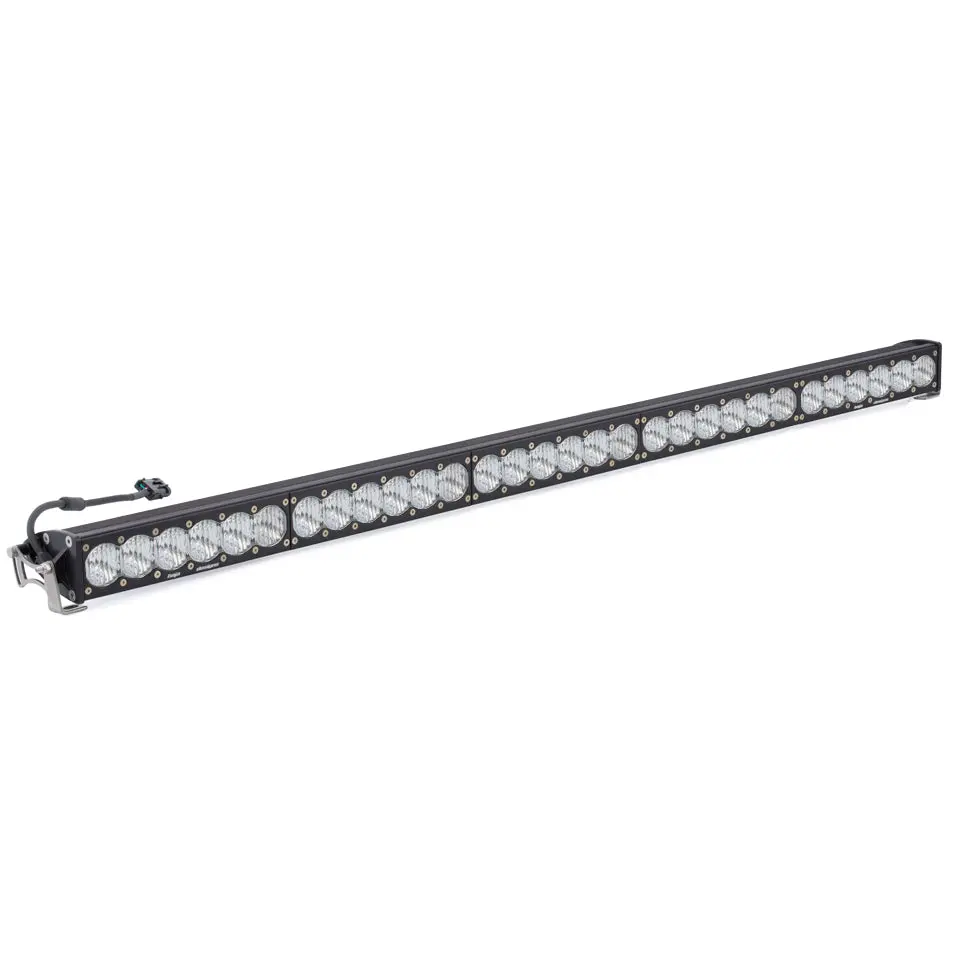

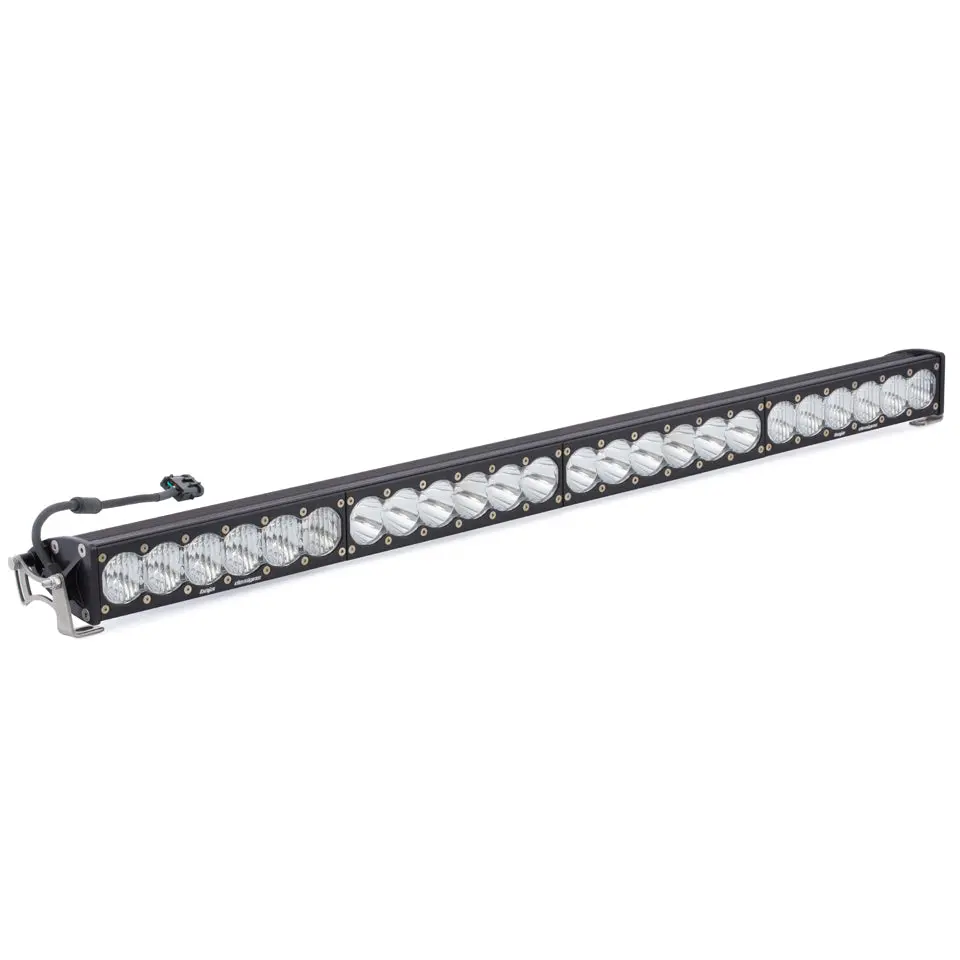

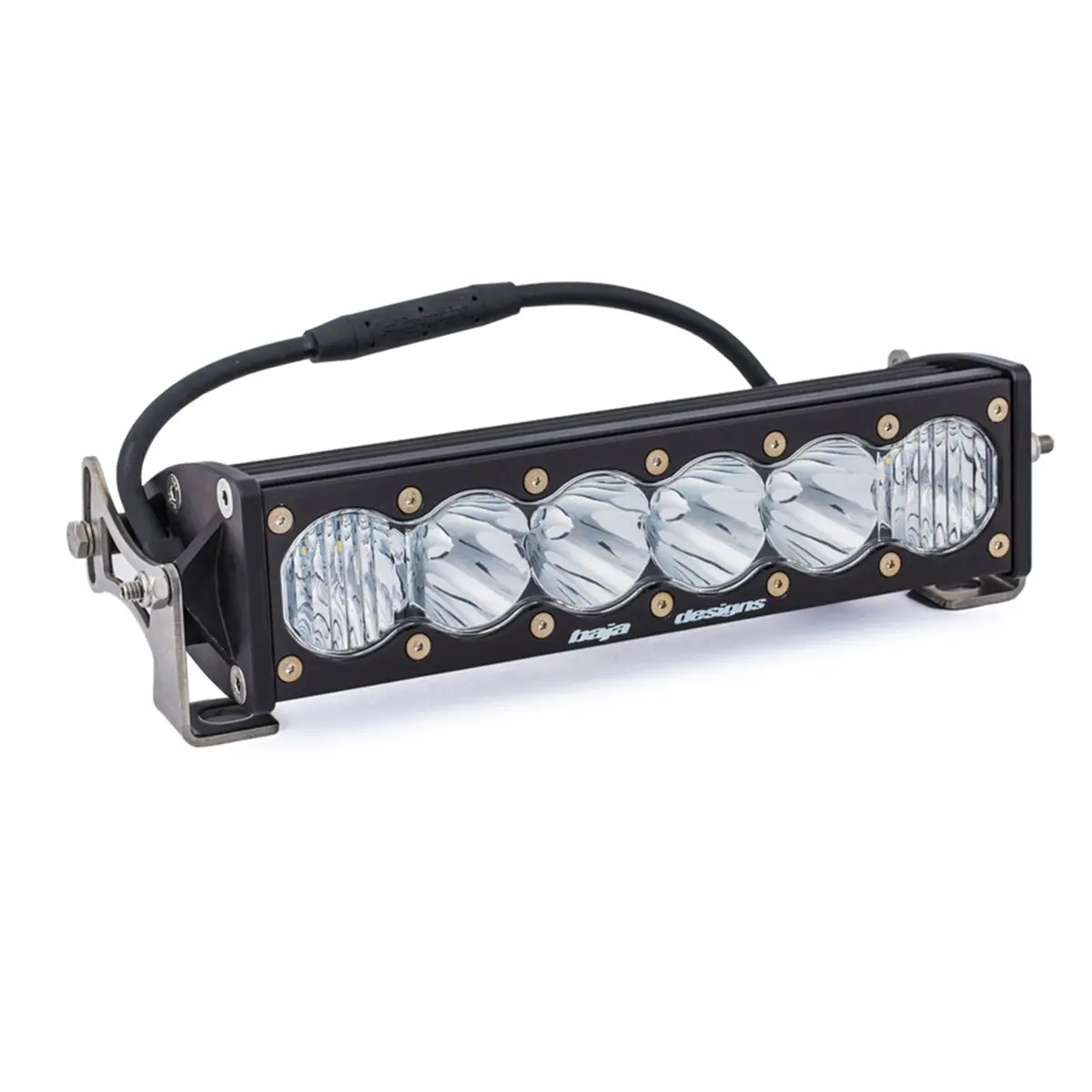

- OnX6 10”/20″/30″/40″/50″ LED Light Bar
- Mounting Brackets
OnX6 – 7,350 lumens per 10″ section
OnX6 Hi-Power – 11,650 lumens per 10″ section – Combines premium near-field and distance LEDs to provide the best of both worlds in one bar.
OnX6 Racer Edition – 6,450 lumens per 10″ section – Engineered for speeds over 110 mph. This bar will shine 40% farther than the standard OnX6 bar.
OnX6 Arc Series – All of the features of our straight OnX6 bars, but with a bend to match the lines of your vehicle.
OnX6 Dual Control – Dual power cord and dual switch. Control the ends of your bar separately from the center sections, for the ultimate in versatility.
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

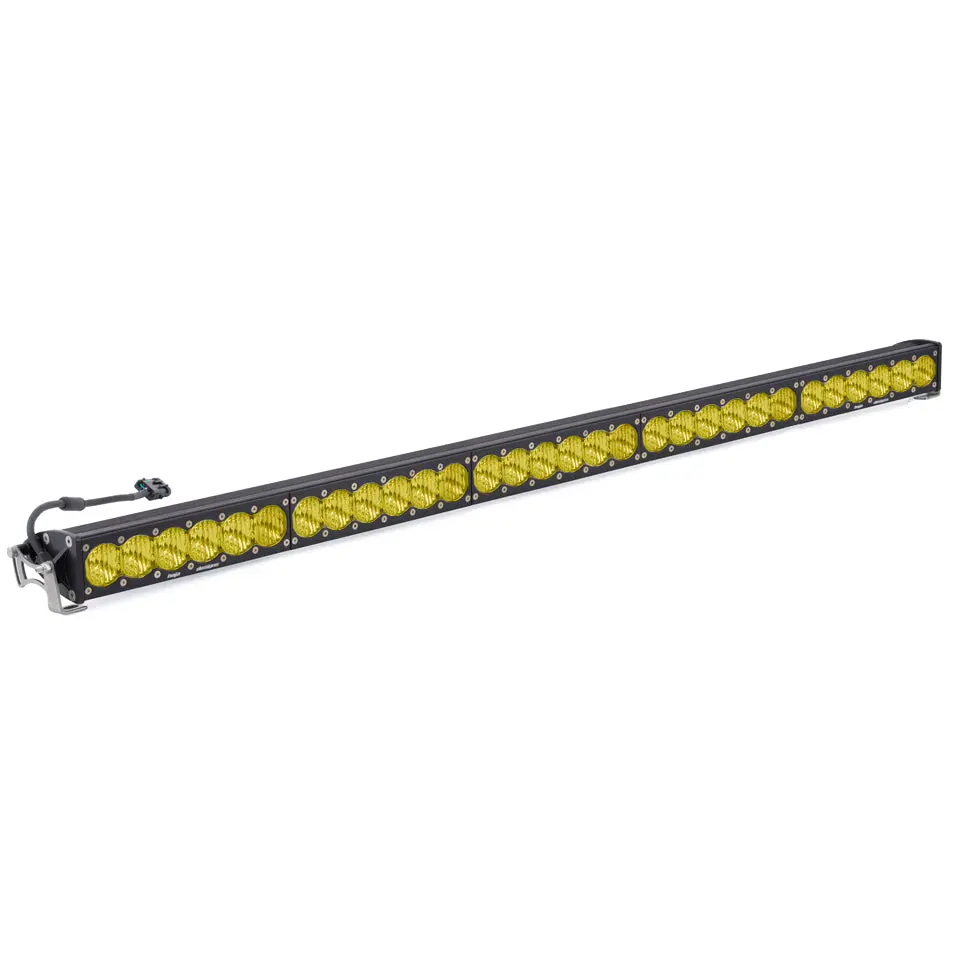

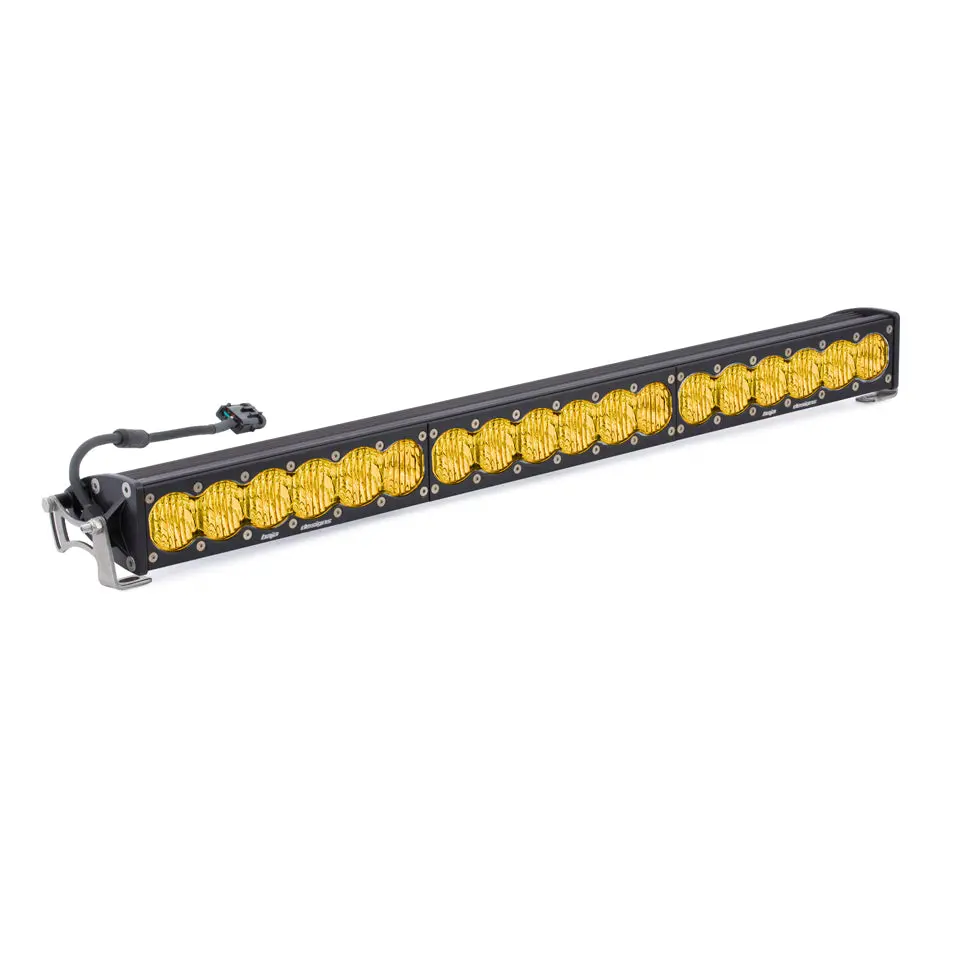

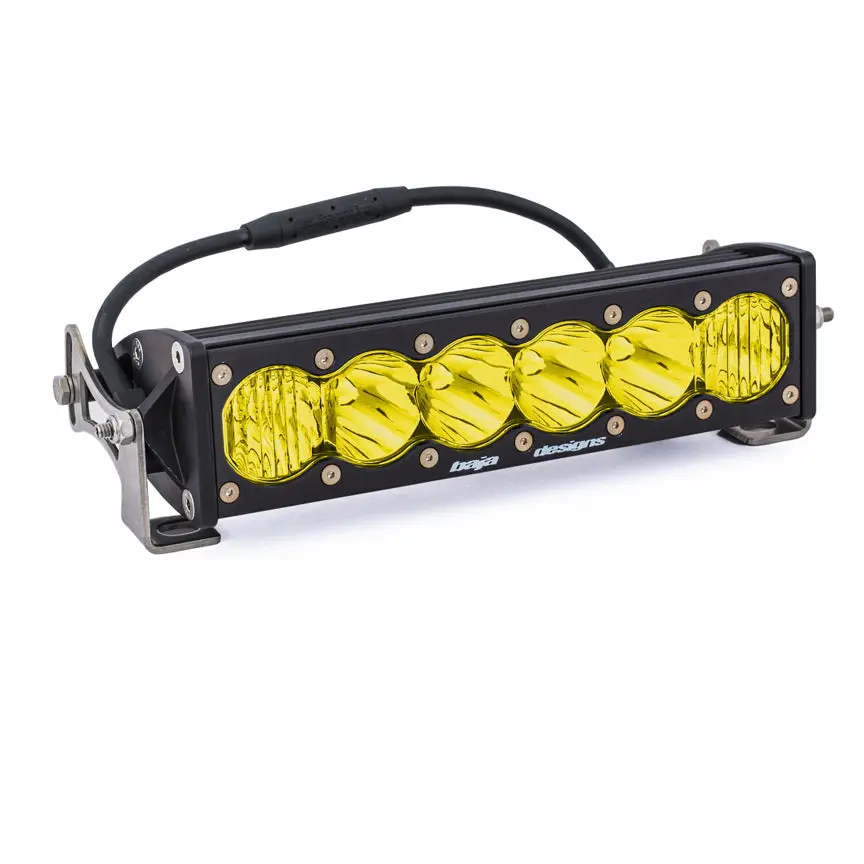

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Racer Edition Spot: A 4° beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)
