Description

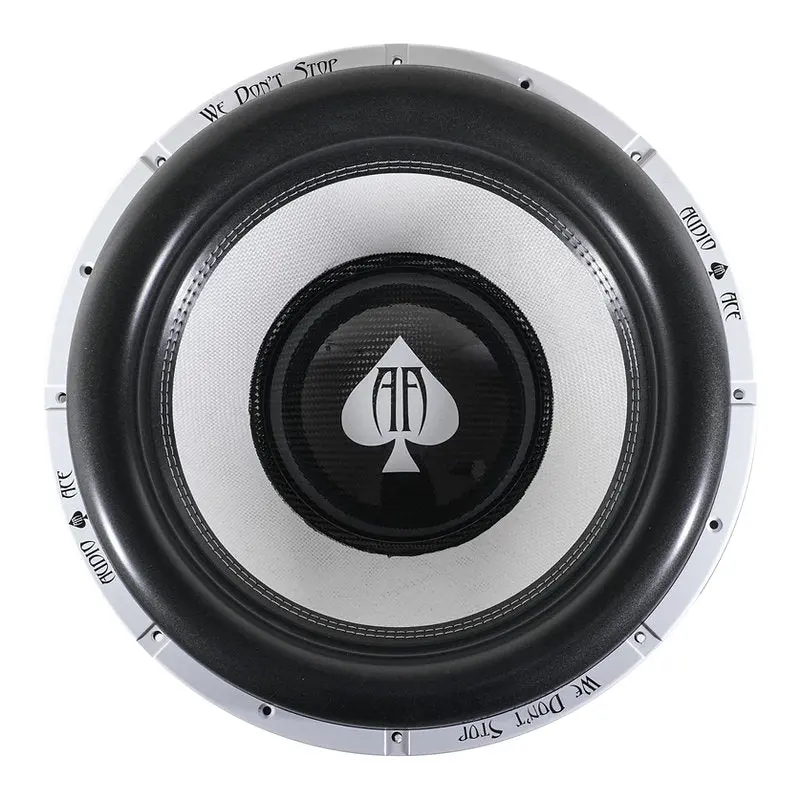

Product Overview: Audio Ace’s Powerful and Versatile 18-Inch Driver
The Audio Ace Jester 18″ D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL), rated at a strong 3,000W RMS. Its design includes a fairly low Free Air Resonance (Fs) and a powerful motor structure, making it highly versatile for great sound across a wide range of music. Whether you’re aiming for extreme sound levels in your daily driver or looking to be one of the loudest vehicles in your town, the Jester is a great choice. It features a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, a 300 oz magnet structure, and a 4-layer 10-inch spider suspension.
| AUDIO ACE JESTER 18″ DUAL 2 OHM SPECIFICATIONS | |
|---|---|
| Model | Jester 18″ |
| RMS Power Handling | 3,000 Watts |
| Voice Coil | 3″ BACCAW 4 Layer Coil |
| Magnet Structure | 300 oz |
| Suspension | 4 Layer 10″ Spider |
| Basket | Heavy Duty Die Cast Aluminum |
| Nominal Impedance | Dual 2 Ohm (D2) |
| Cutout Diameter | 16.85 in |
| Mounting Depth | 11.10 in |
| LOSS FACTORS & MISC PARAMETERS | |
| Total Q (Qts) | 0.550 |
| Mechanical Q (Qms) | 6.006 |
| Electrical Q (Qes) | 0.605 |
| Free Air Resonance (Fs) | 29.2 Hz |
| Sensitivity (Lm) | 87.30 dB |
| Equivalent Volume (Vas) | 81.8396 L |
| Moving Mass (Mms) | 703.831 g |
| BL Factor (Bl) | 27.457 |
| DC Resistance (Re) | 3.53 Ohms |
