Description
Product Overview: High-Output Coaxial Loudspeaker

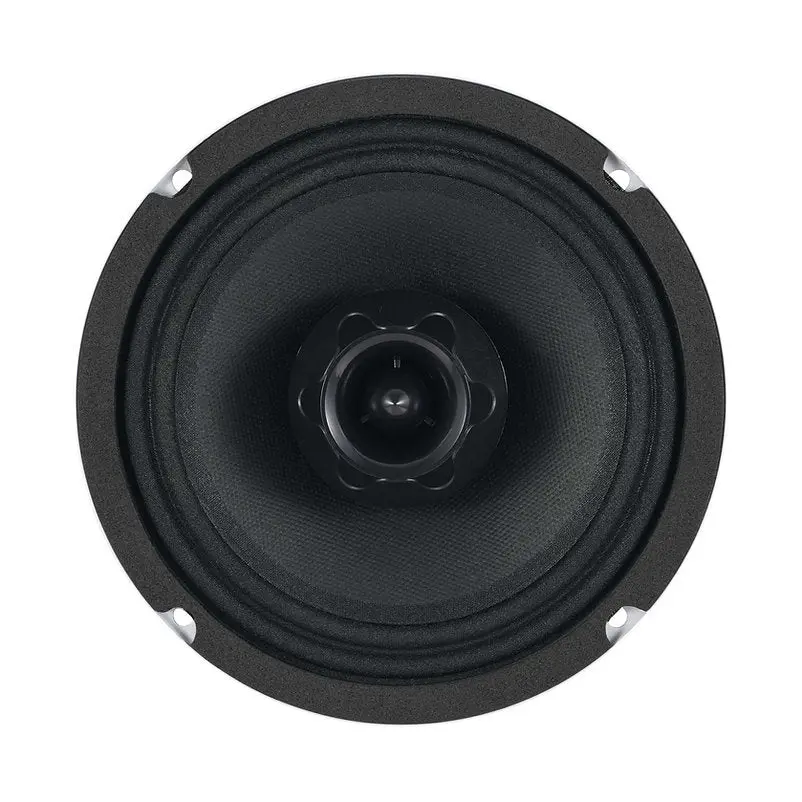

The new Audio Ace Diamond X8 is a high-efficiency coaxial speaker that blends the powerful mid-range response of a Pro Audio driver with the clarity of an integrated tweeter for a full and vibrant sound. Conservatively rated at 180W RMS, this 8-inch coaxial speaker is designed for maximum acoustic output, boasting a high 98 dB sensitivity (SPL). It features a 1.52-inch voice coil and a substantial 34.3 Oz motor within a custom-tooled basket bearing the Audio Ace logo. With a wide frequency range of 80 Hz to 20 kHz and a 4 Ohm impedance, the Diamond X8 is a premium option for those seeking high-volume performance across the entire audible spectrum. Available in Black or White options.
| AUDIO ACE DIAMOND X8 COAXIAL MID RANGE SPECIFICATIONS | |
|---|---|
| Type | Coaxial Mid Range Loudspeaker |
| Size | 8 Inches |
| RMS Power Handling | 180 Watts |
| Nominal Impedance | 4 Ohm |
| Voice Coil | 1.52 Inches |
| Motor Weight | 34.3 Oz |
| Sensitivity | 98 dB |
| Frequency Range | 80 – 20k Hz |
| Maximum Excursion (Xmax) | 1.75 |
| Mounting Depth | 3 5/8 Inches |
| Overall Diameter | 8 1/4 Inches |
| Available Colors | Black or White |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 98 dB |
| Electrical Q (Qes) | 0.373 |
| Mechanical Q (Qms) | 5.848 |
| Total Q (Qts) | 0.351 |
| Resonance Frequency (Fs) | 88 Hz |
| Effective Piston Area (SD) | 213.82 |
| DC Resistance (Re) | 4 Ohms |
| BL Factor (BL) | 8.323 |
