Product Overview: High-Output Mid-Range for Car Audio

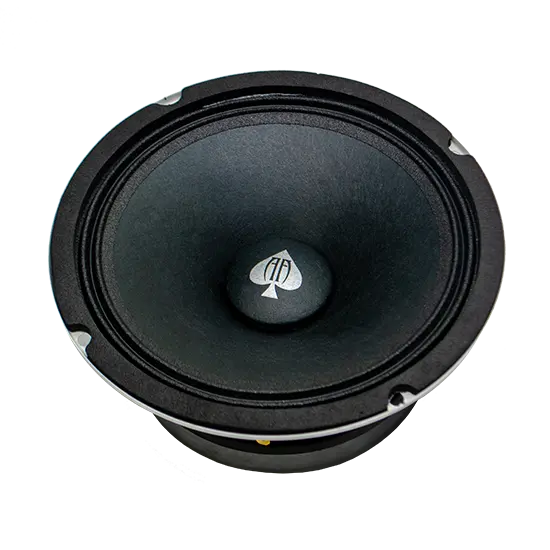

The Audio Ace Diamond 6.5″ is a specialized mid-range speaker that brings the high volume and efficiency of a Pro Audio PA-style driver into your vehicle. Sold as a pair, these speakers are built to be loud, handling 150W RMS and featuring an impressive 96 dB Sensitivity (SPL) to maximize output from your amplifier’s power. They feature a 1.5-inch voice coil and a 26 oz motor housed in a custom-tooled basket with the Audio Ace logo. The 4 Ohm impedance and a wide frequency range of 90 Hz to 13 kHz make them an excellent choice for dominating the mid-frequency band. Available in black or white to match your installation aesthetic.
| AUDIO ACE DIAMOND 6.5″ MID RANGE SPECIFICATIONS (PAIR) | |
|---|---|
| Size | 6.5 Inches |
| RMS Power Handling | 150 Watts |
| Nominal Impedance | 4 Ohm |
| Voice Coil | 1.5 Inch |
| Motor Weight | 26 oz |
| Sensitivity (SPL) | 96 dB |
| Frequency Range | 90 – 13k Hz |
| Maximum Excursion (Xmax) | 1.25 |
| Overall Diameter | 6 5/8 inches |
| Available Colors | Black or White |
| THIELE-SMALL PARAMETERS | |
| Electrical Q (Qes) | 0.452 |
| Mechanical Q (Qms) | 3.051 |
| Total Q (Qts) | 0.394 |
| Resonance Frequency (Fs) | 95 Hz |
| Effective Piston Area (SD) | 143.34 |
| DC Resistance (Re) | 4 Ohms |
| BL Factor (BL) | 7.035 |
